Troubleshooting Your RFID Reader (CSL CS108)


Summary

This article describes common problems you may encounter using the CS108 RFID device and helps you to resolve them.

The possible issues are:

  • CS108 Device is not getting ON / OFF
  • CS108 Device is not connected with TagMatiks Wedge application
  • CS108 Device is connected to another IOS device
  • RFID Tags are not getting read in TagMatiks Wedge application
  • CS108 Device is not Charging
A. Switching ON & OFF CS108 Device

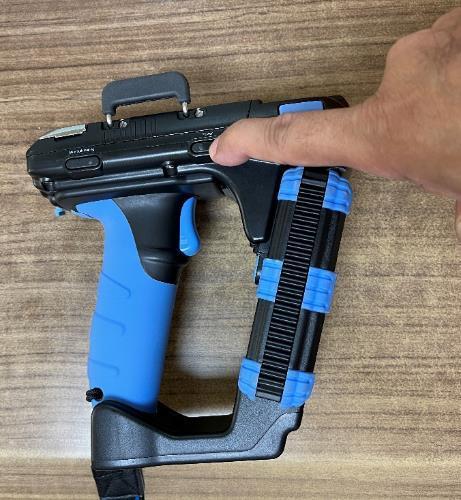

Switching ON the CS108 Device:

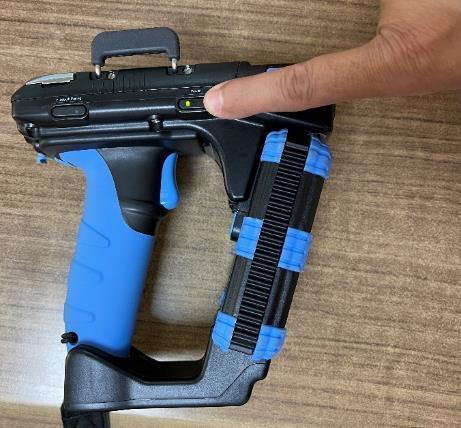

1. Press the Main Power button continuously for 3 seconds only.

2. Then its LED lights up Green meaning power is on.As shown in Fig 0.1

Fig 0.1 : Turn On the CSL 108 and Lights turn into green

Switching OFF the Device:

1. To switch off when the reader is on, press the Main Power button continuously for 3 seconds only.

2. Then its Green LED light is off, means device is power off.As shown in Fig 0.2

Fig 0.2 : Turn Off the CSL 108 and Light Turn off.
B. CS108 Device is not connected with TagMatiks Wedge application

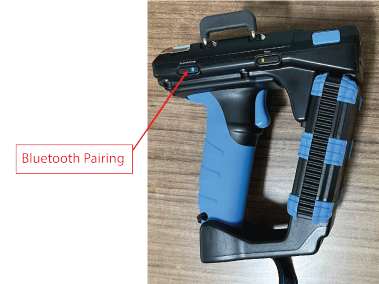

Immediately after the device is powered on, the “Bluetooth Pairing” LED light will automatically start flashing Blue – this indicates that device is now in discoverable mode and ready to pair with a nearby IOS device. As shown in Fig 0.3.

Fig 0.3 : Pairing the CSL CS108 Reader

NOTE: The CS108 uses only the Bluetooth Low Energy protocol, therefore IOS device / devices must have Bluetooth 4.0/4.1/4.2 to be able to connect to the CS108.

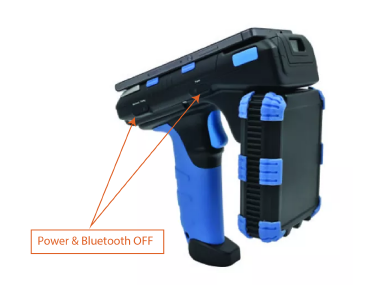

On the right-hand side of the CS108 device; all lights will be Off; as shown below in Fig 0.4.

Fig 0.4:Turn Off the CSL CS108 Reader

1. Open the TagMatiks Wedge application and login into it.

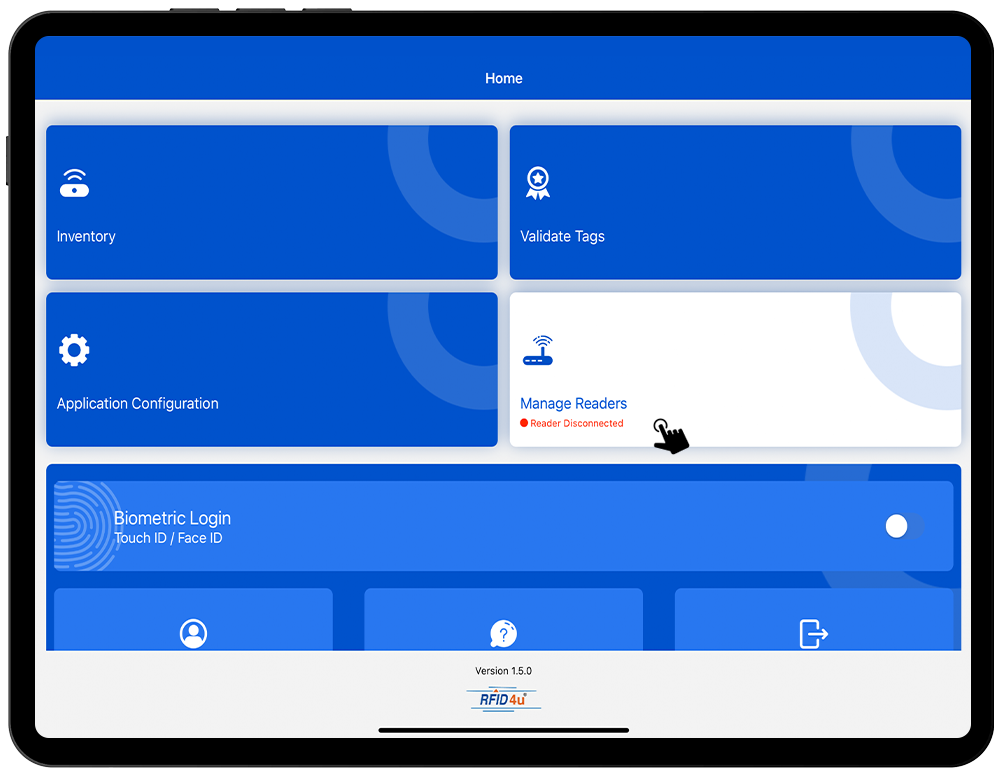

2. In the Home page of the application, you can check the reader’s connection status; as shown below in Fig 0.5

3. As no reader is paired with this IOS device, thus the status is showing as: “Reader Disconnected”. Refer below image[Fig 0.5].

4. To make the connection with CS108 reader; Click on “Manage Reader” option from the Home Page.

Fig 0.5 Reader Disconnect Status showing in Home Page.

NOTE: Make sure the IOS device’s Bluetooth must be on.

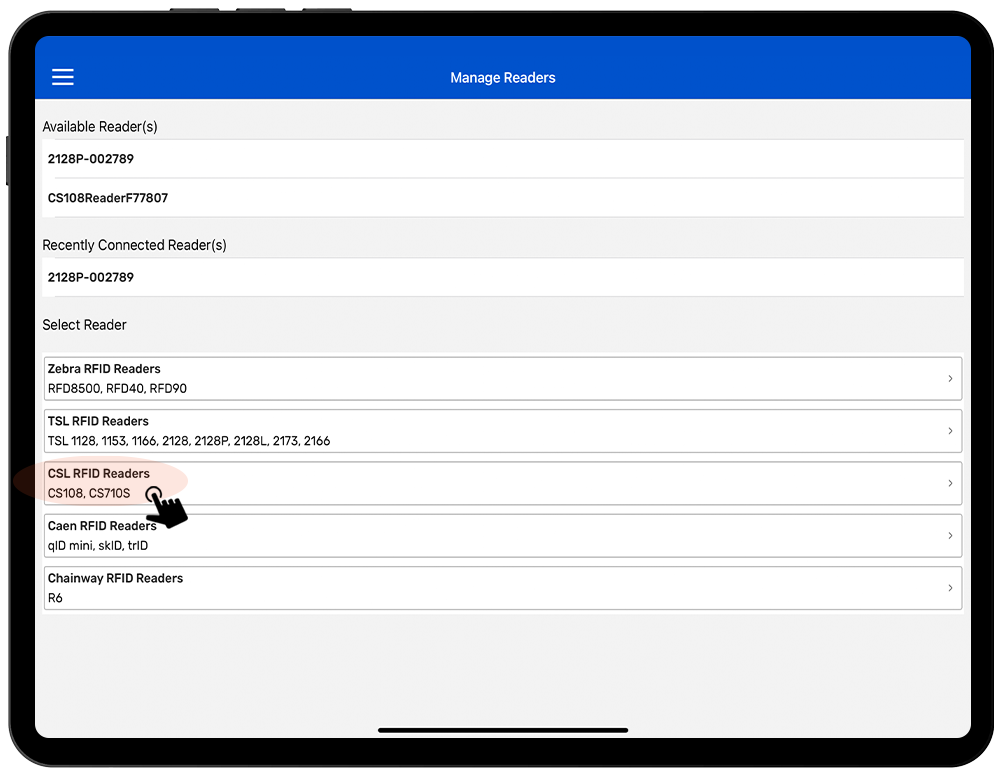

5.Then multiple reader options will come on the display.Select “CSL RFID Readers”.As shown in Fig 0.6.

Fig 0.6: Multiple Reader Option List.

6. Then a new window will open, named: “Readers List.”As shown in Fig 0.7.

Fig 0.7 Reader List Page

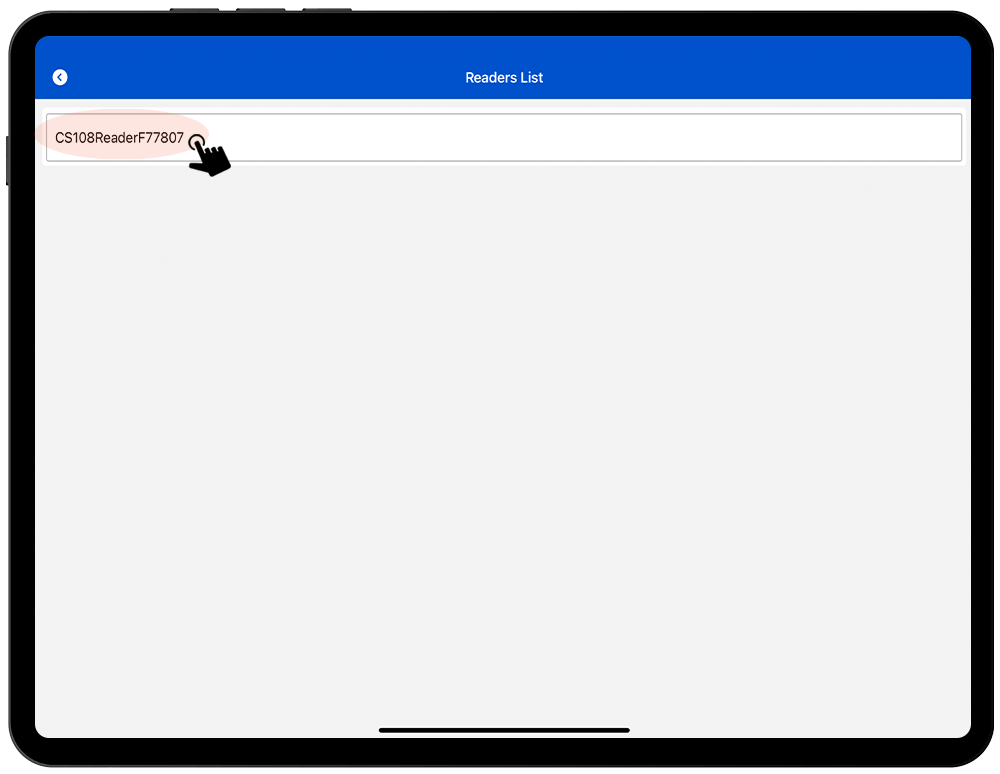

7. Click on CSL 108 and Bring CS108 reader close to the IOS device.

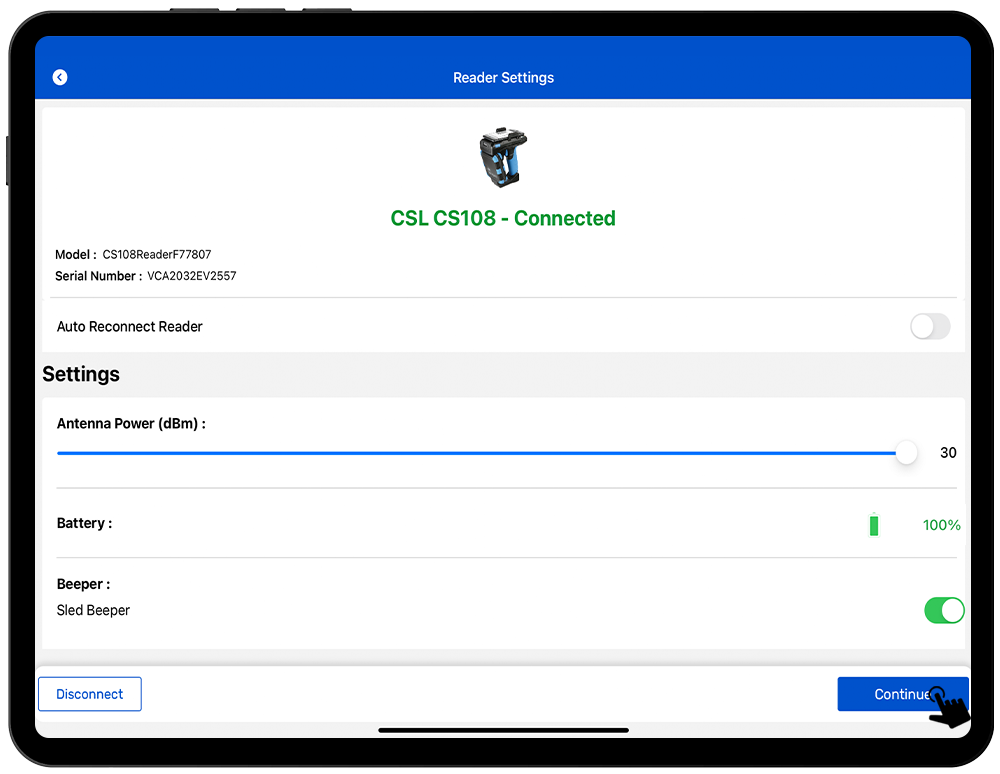

8. The reader’s name will be “CS108ReaderXXXXXX”. As shown in Fig in 0.8.

Fig 0.8 Reader Setting page.

9. Application will also fetch the Serial number of the connected device and show it along with the reader’s name; as shown in above image[Fig 0.8].

10. After successful connection, the “Bluetooth Pairing” light will become solid blue; as shown in below image[Fig 0.9].

Fig 0.9 : Bluetooth Pairing.

11. Simultaneously the “RFID” LED light up solid YELLOW & “Barcode” LED light up solid BLUE.

II. On TagMatiks Wedge Application: CS108 Reader check:

1. Click on the “Manage Reader” button option from the home page of Application. As shown in Fig 1.0.

Fig 1.0: Click on Manage Reader option.

NOTE: Make sure the IOS Bluetooth must be on and near to the CS108 reader.

2. You must select “CSL RFID Readers” . As Shown in Fig 1.1.

Fig 1.1 : Select CSL RFID Readers.

3. Then a new window will open, named: “Readers List.”

4. If no reader comes/reflects in the reader list.

5. This means:

Either no CS108 RFID reader is there nearby the IOS device OR CS108 Reader is already paired with another Android/iOS device.

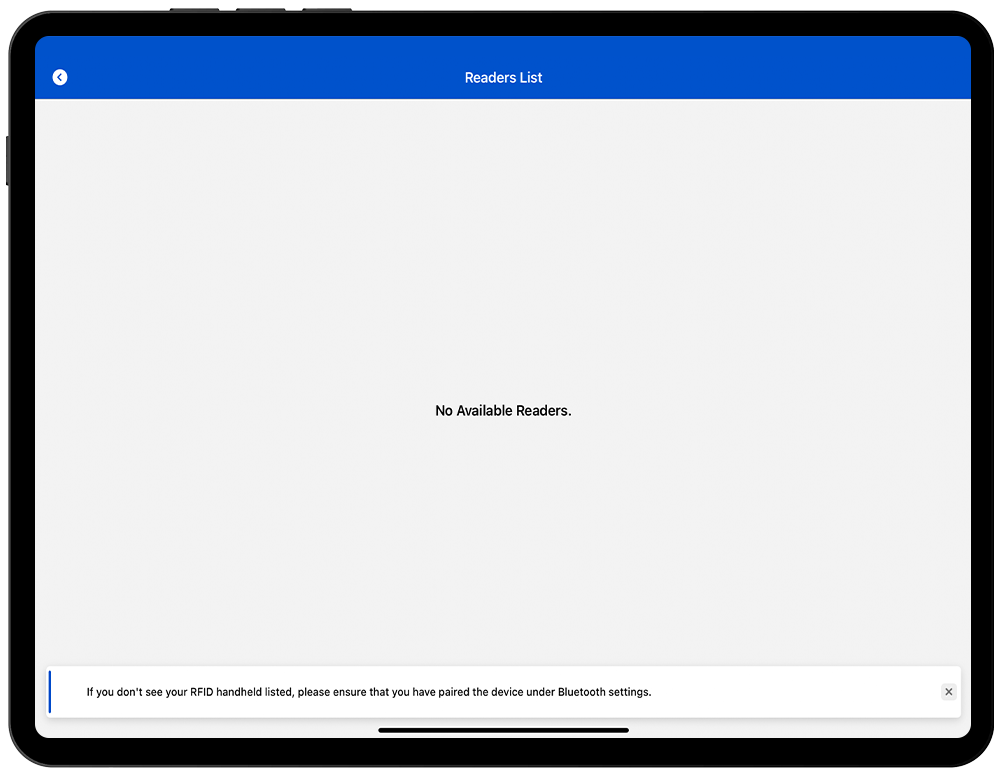

Then TagMatiks Wedge application will show “No Available Readers.” Refer Below image.Fig 1.1.

Fig 1.1: No Available Readers.
C. CS108 Device is connected to another Android/iOS device

If the CS108 device is “ON” but couldn’t connect to the IOS device. Then there is a possibility that the CS108 device is already paired & connected to another Android/iOS device. To check the same, please follow following steps

I. CS108 device LED status check:

1. Check the status of the “Bluetooth Pairing” LED light.

2. If it is solid blue; means CS108 device is already in paired with another Android/iOS device; as shown in below image:

3. Else “Bluetooth Pairing” LED light is flashing Blue – this shows that CS108 device is now in discoverable mode and ready to pair with a nearby IOS device.

II On TagMatiks Wedge Application: CS108 Reader check:

1. Click on the “Manage Reader” button - from the home page of the application.

NOTE: Make sure the IOS Bluetooth must be on and near to the CS108 reader.

2. You must select “CSL RFID Readers”.

3. Then a new window will open, named: “Readers List.”

4. If no reader comes/reflects in the reader list.

5. This means:

Either no CS108 RFID reader is there nearby the IOS device OR CS108 Reader is already paired with another Android/iOS device.

Then TagMatiks Wedge application will show “No Available Readers.” Refer above image.Fig1.1.

D. RFID Tags are not getting read in TagMatiks Wedge application

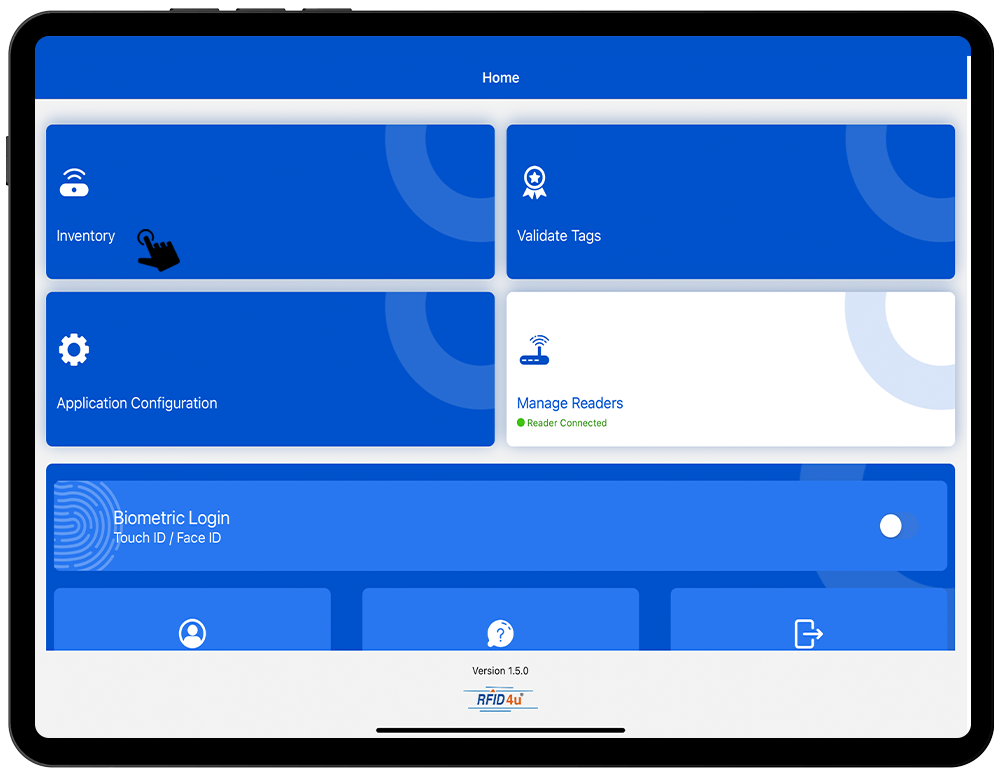

1. To read the RFID tags from CS108 reader; Click on “Inventory” button option, from Home Page. As shown in Fig 1.2.

Fig 1.2: Inventory Button Available on Home Page.

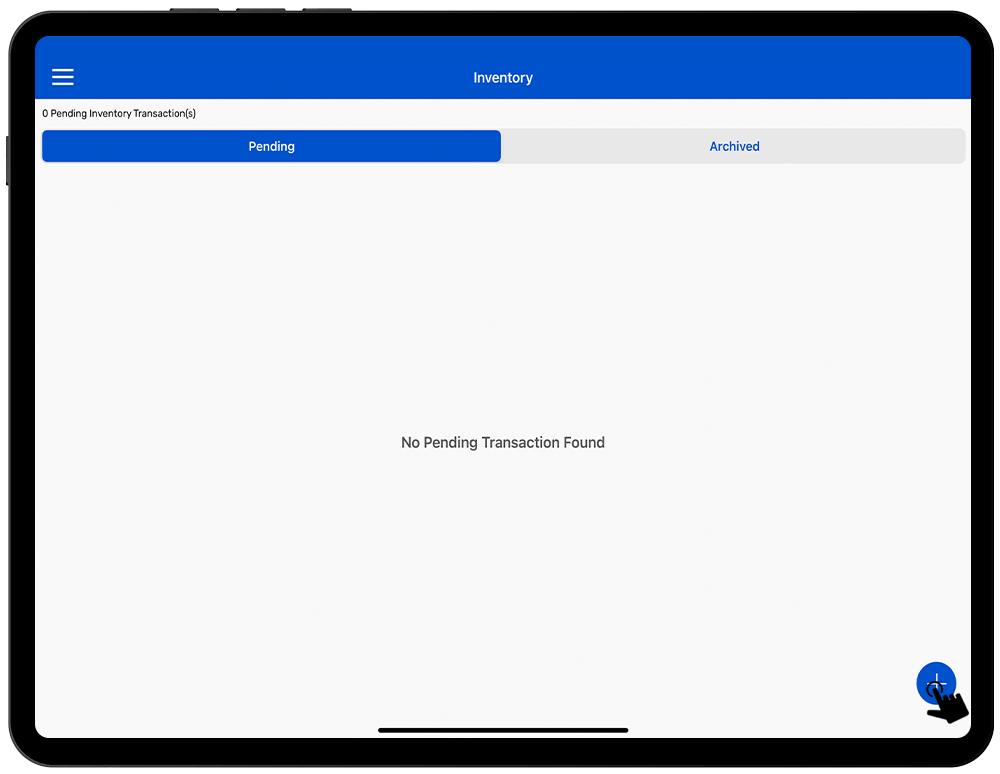

2. Then a new window will open, named: “Inventory.” As shown in Fig 1.3.

Fig 1.3 Inventory Page

3. Create a new Inventory transaction, by clicking on the “+” button on the right bottom of the application. As shown in Fig 1.3.

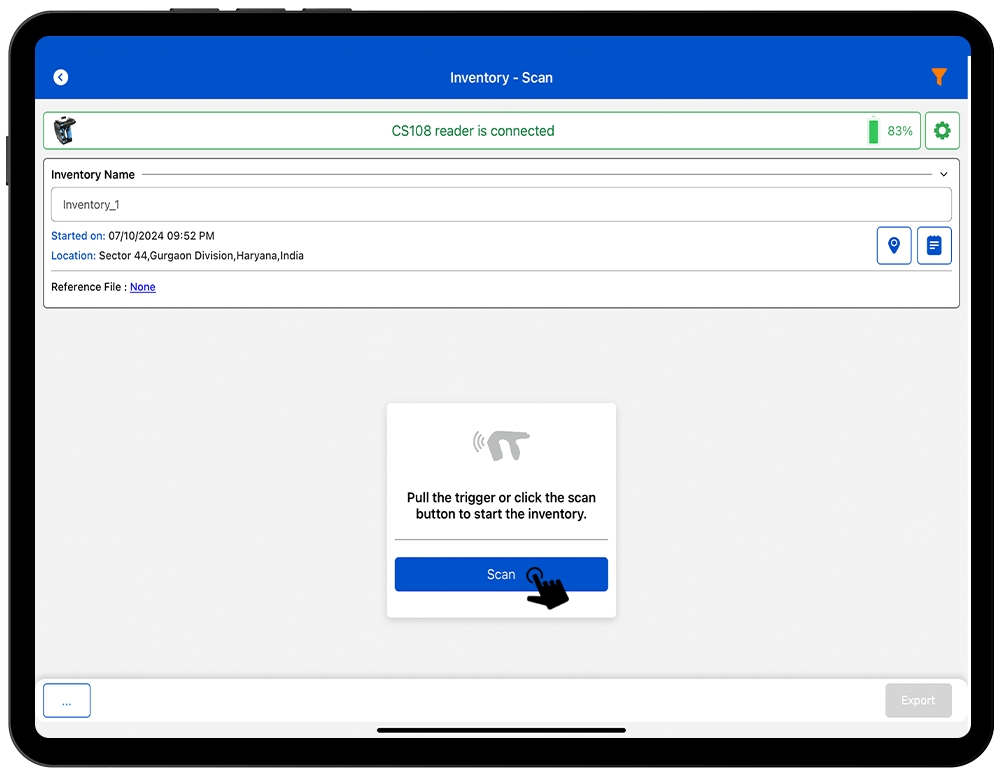

4. Click on the “Scan” button option for reading the RFID tags. As shown in Fig 1.4.

Fig 1.4 : Scan Button Option available on Inventory Scan Page

5. Once the “Scan” button is Clicked; then the “RFID” LED starts flashing.

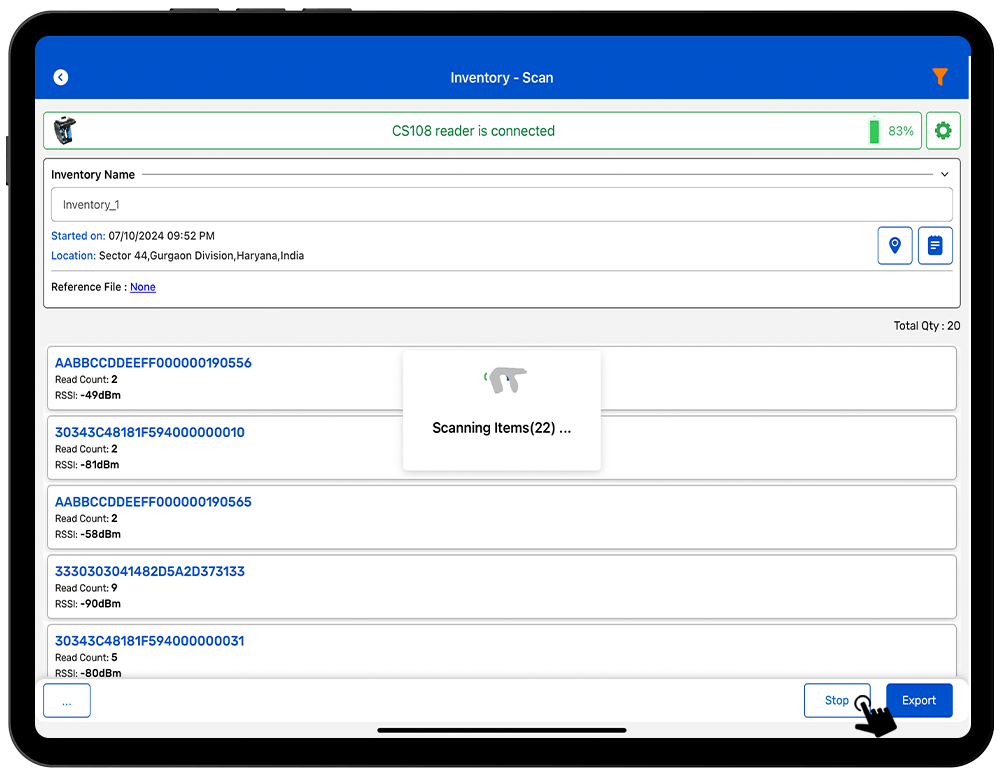

6. This means the CS108 reader is in polling state and reading the tags. Same can be seen in the application window. Refer below image[Fig 1.5].

Fig 1.5 : Scanning RFID tags.

7. Once you Press “Stop” button (on the right bottom of the application); reader will stop reading the tags.

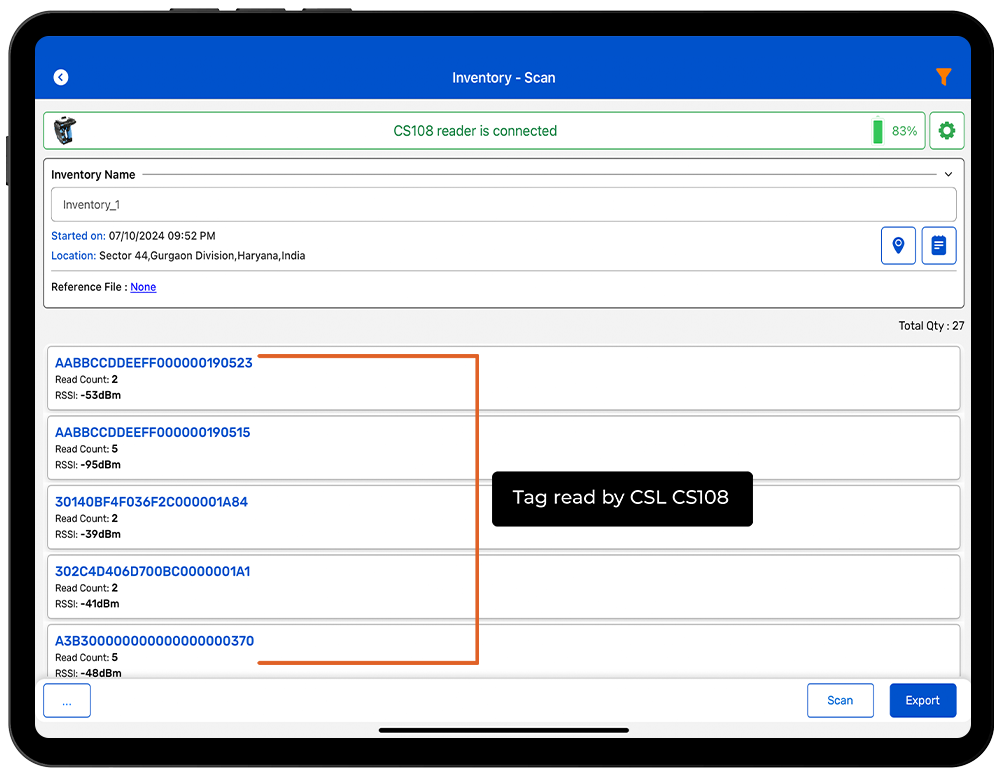

8. As a result, the read tags will populate on the application window, as shown in below image[Fig 1.6].

Fig 1.6 : After Scanning RFID Tags.
E. CS108 Device is not charging.

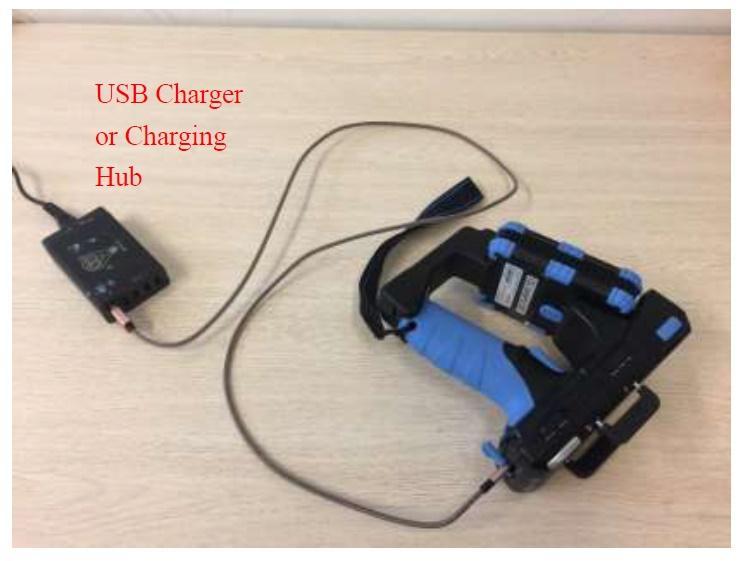

The CS108 can be directly charged by inserting a USB cable with the following plugs:

  • USB Type C plug on one side
  • USB Type A plug on the other side
  • The above Type A plug connects to a USB charger with the traditional Type A socket. The charger can be 1A or 2A.
Fig 1.7 : CSL CS108 Charger

Please check the cable and insert it properly inside the charging slot.

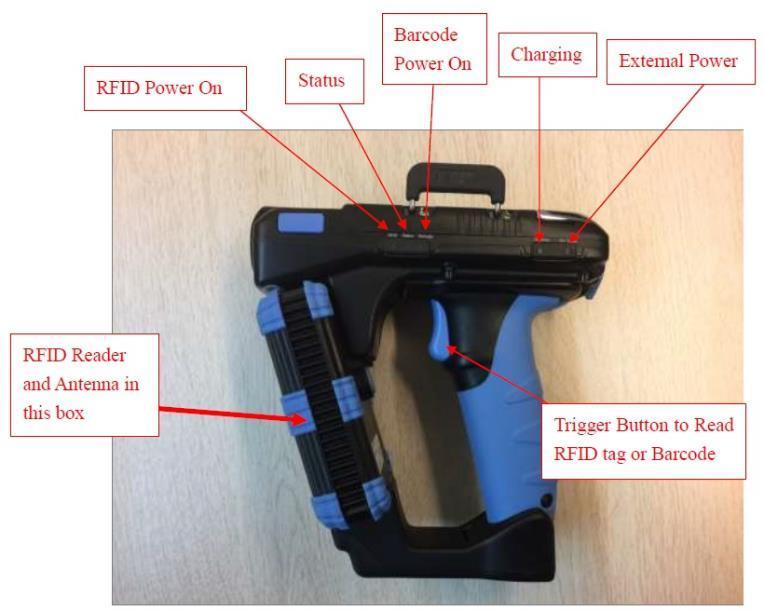

LEDs will light up:

“Ext. Power” LED: Green LED. Whenever the CS108 is connected to an external power supply, this Green LED will light up.

“Charging” LED: Red LED. When the battery is heavily drained, this red LED will be bright. When the battery is completely recharged, this red LED will be very dim.

NOTE: Do not be alarmed if you connect the USB cable and this LED is very dim. It just means the battery is fully charged
