TagMatiks Wedge - iOS Help

Solving Export Issues


Summary

This document describes overcoming common issues while exporting the data from TagMatiks Wedge. These issues are highlighted and their solutions are provided in this document.

The common issues are:

  • Wrong format of Export file
  • Wrong file location
A. Export File Format

Sometimes people export their data in the wrong file format and then try to open it in the software / tool which it does not support. So it is essential to select an appropriate file format to view the data properly.

Following are the steps that will help you to choose the correct and appropriate file format for your export data file.

1. On the TagMatiks Wedge Application, to set the Export file format - click on the "App Configuration '' settings.

2. A new window will open named Application Configuration.

3. Click on “Export Configuration”.

4. On the “Export Configuration” page; please select the file format type from the drop down list. Refer below screenshot: Fig 0.1

Fig 0.1: Export Configuration Page.

5. Under the drop down list, multiple file format options are there; as shown in the below screenshot. 0.2.

Fig 0.2: Multiple file format.

6. You can select the required format.

Note: - Please select your file format; provided you should have the software / tool to open it. For example,

  • Export as Text >> a tool that can be used is “Notepad”
  • Export as CSV >> a tool that can be used is either “ Excel’ or “Notepad”
  • Export as PDF >> a tool that can be used is “Adobe Reader”
B. File Location

After taking the Asset Inventory, the inventory data can be exported as

1. Open the inventory file; like here the Inventory file is: “Shoes Reference File”.

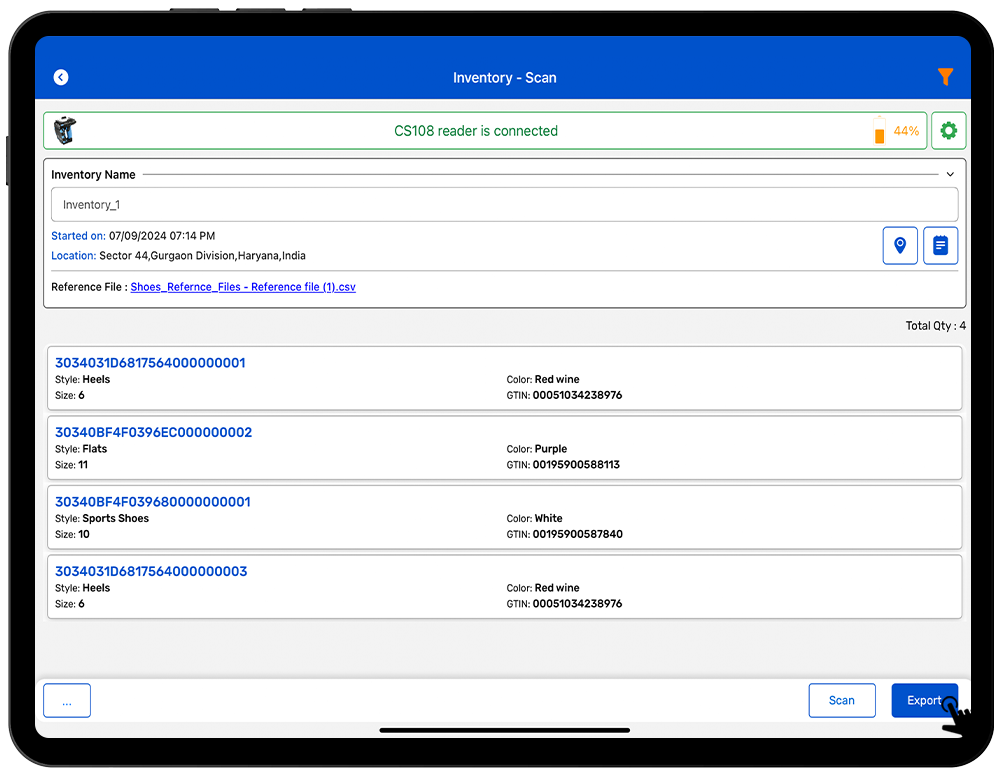

2.Then click on the “Export” button – on the bottom right-hand side of the application as shown in the image above Fig 0.3.

Fig 0.3 : Click on Export option.

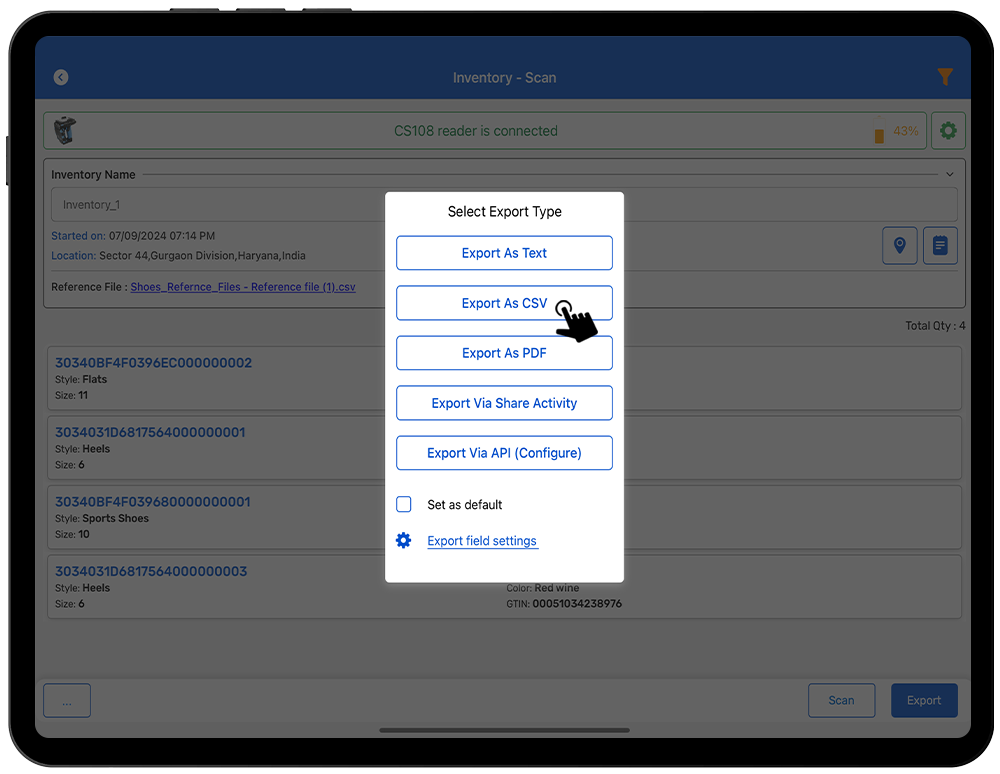

3.Once, the export button is clicked then the application will show the export option. As shown in Fig 0.4..

Fig 0.4 : Export options display, after click on Export button

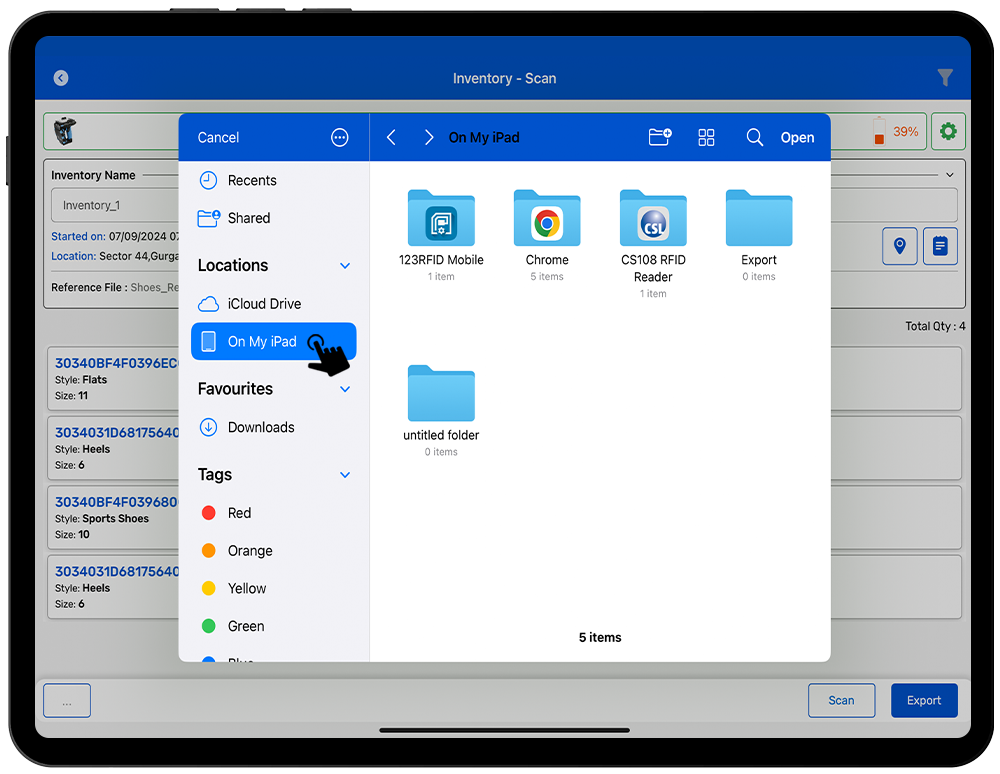

4. Select the export option which you have already set in the export settings like (Export as CSV), and then select the location on the IOS device where you want to save it. As shown in Fig 0.5.

Fig 0.5: Location to save the File.

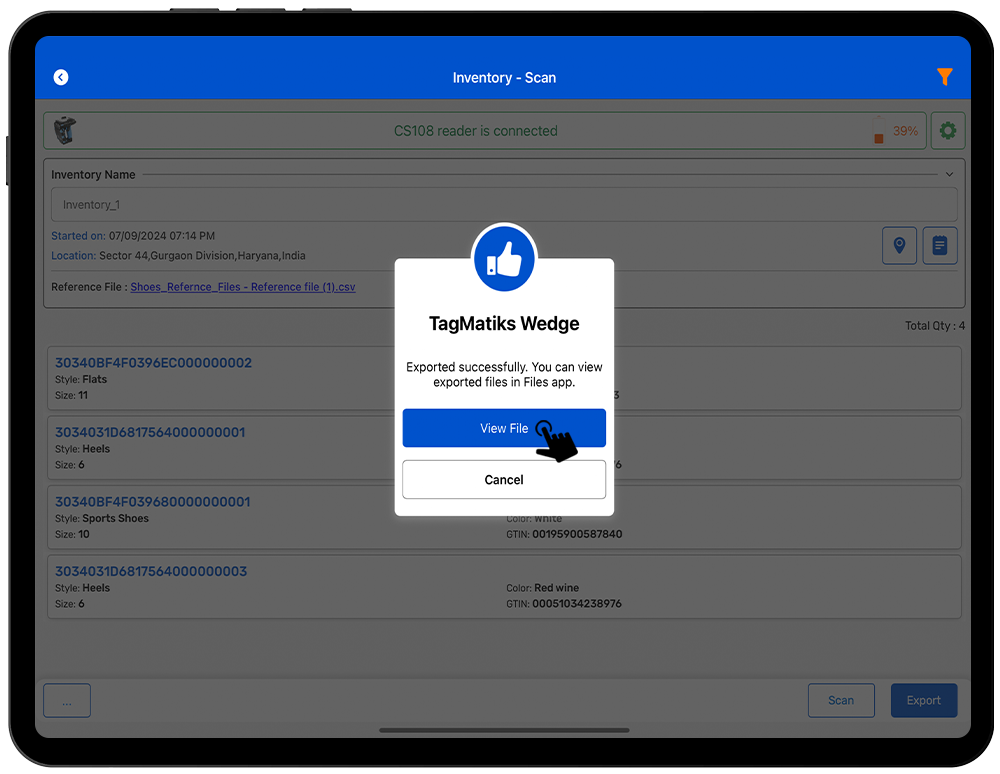

5. After Allowing TagMatiks wedge for Export file, then it will Export the file and show a message on TagMatiks Wedge Application :- Export Completed . As shown in Fig 0.6..

Fig 0.6: Export Completed message shown

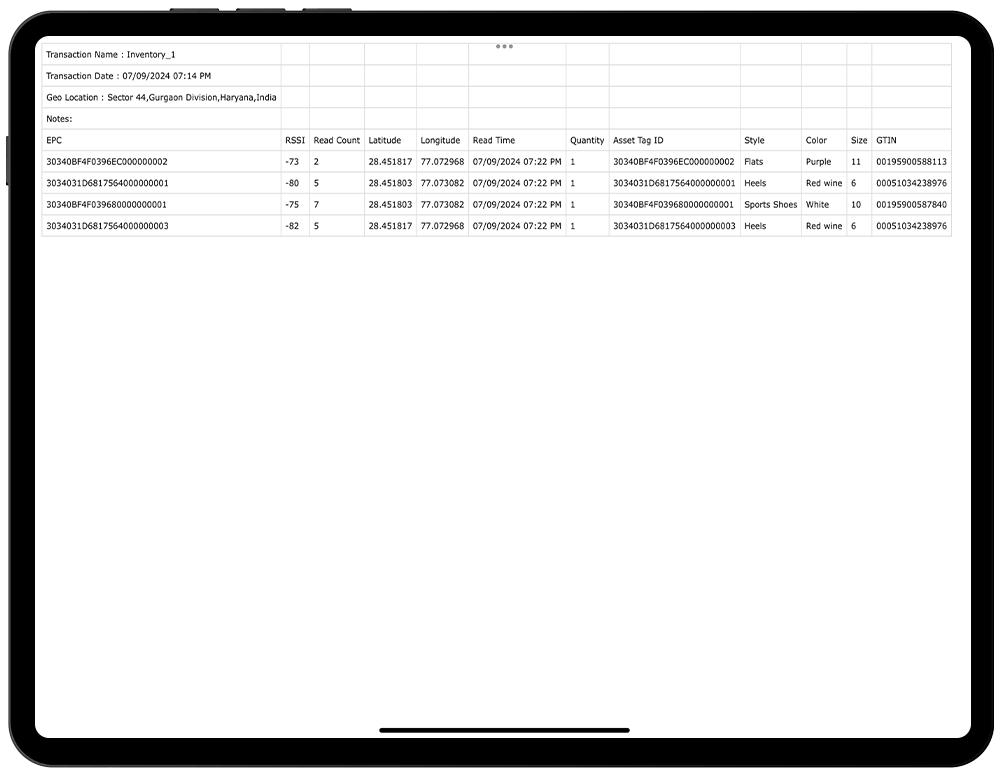

6.As a result, the inventory file of scanned items can be seen on the IOS device.As shown in Fig 0.7.

Fig 0.7: Export file.
