TagMatiks Wedge - iOS Help

Using the ASCII Conversion Feature


Summary

The ASCII Conversion feature is used to convert the HEX to ASCII values for EPC Memory Bank. So that it's easy for the human readable if we store any valid ASCII data to the EPC memory bank in hexadecimal format.

Eg.

Hex: 000000000000000054657374
ASCII: Test

Pre-requisites
  • RFID reader should be connected with the IOS device.

Please follow the below mentioned steps to ASCII Conversion the tag in TagMatiks Wedge Application.

1. Open the TagMatiks Wedge application and log into it.

2. Click on Application Configuration option from the home page of Application. As shown in Fig 0.1.

Fig 0.1 : Application Configuration option available on home page

3. Click on the Advanced option. As shown in Fig 0.2.

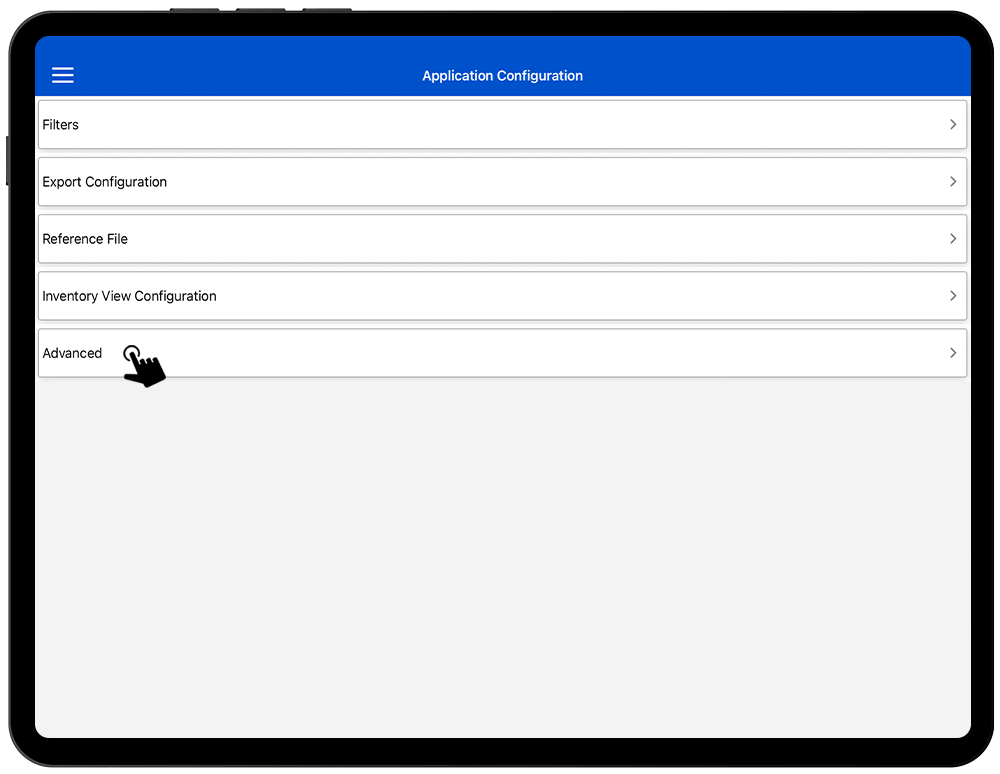

Fig 0.2 : Advance option available on Application Configuration Page

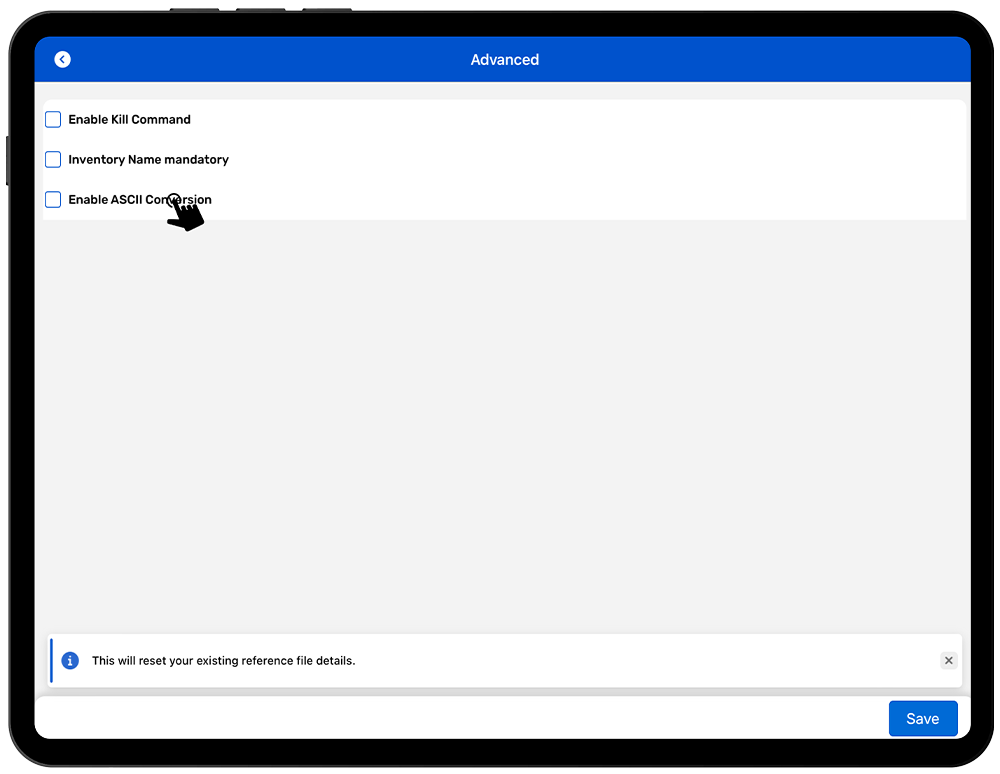

4. Click on the “Enable ASCII Conversion” option. As shown in Fig 0.3.

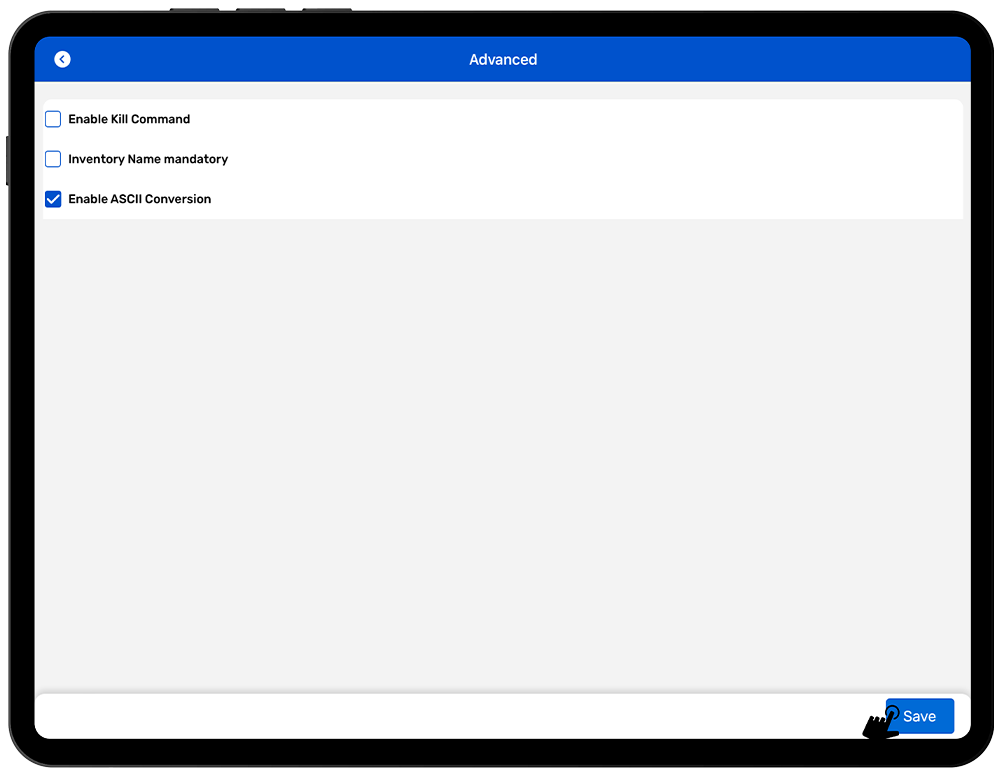

Fig 0.3 : Click on Enable ASCII Conversion

5. After enabling the ASCII conversion option , Click on Save button. As shown in Fig 0.4.

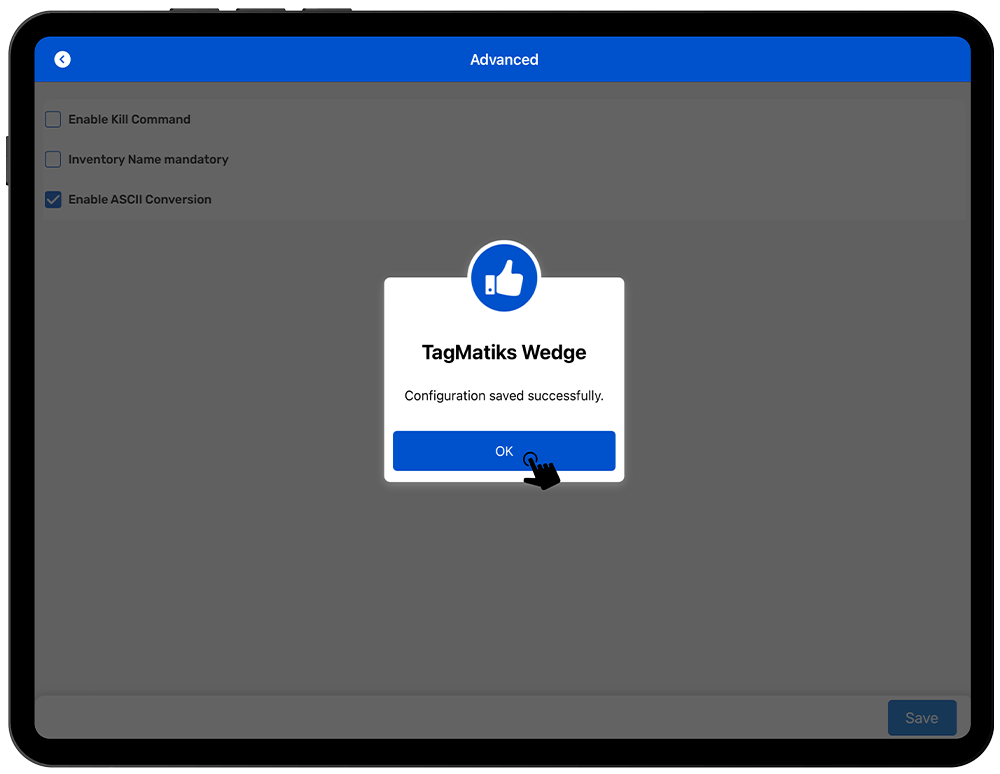

Fig 0.4: Click on Save Button
Fig 0.5 : After Click on scan button

6. Click on the Application Configuration option from the home page of Application.

7. Click on the Inventory view Configuration option. As shown in Fig 0.6.

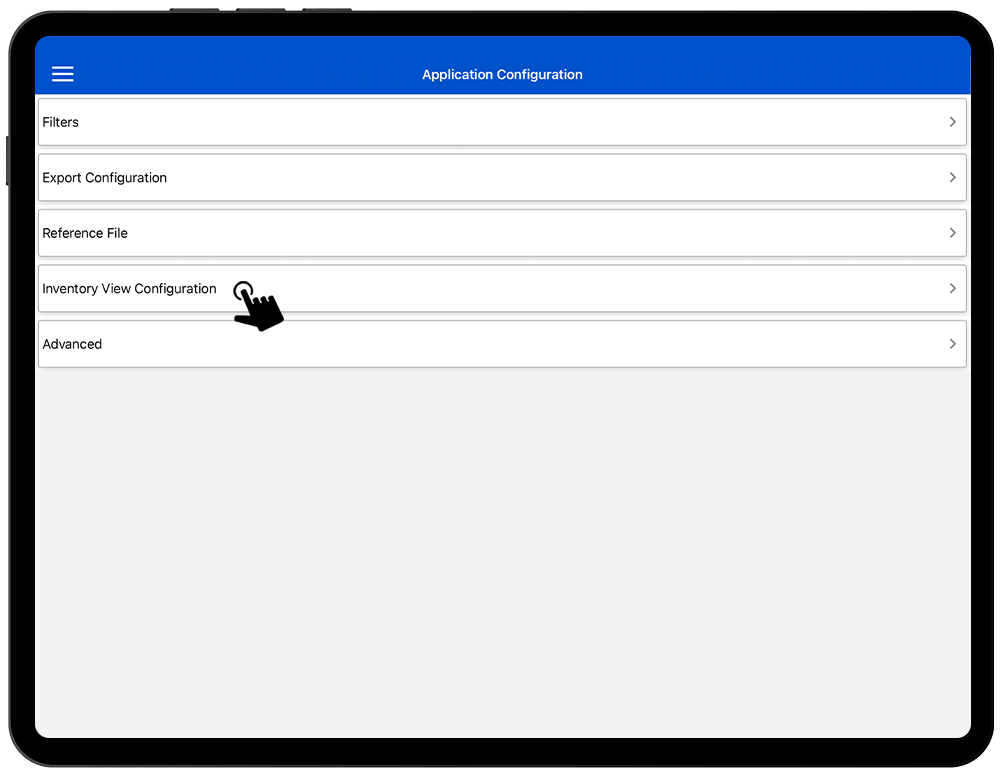

Fig 0.6 : Inventory Configuration option

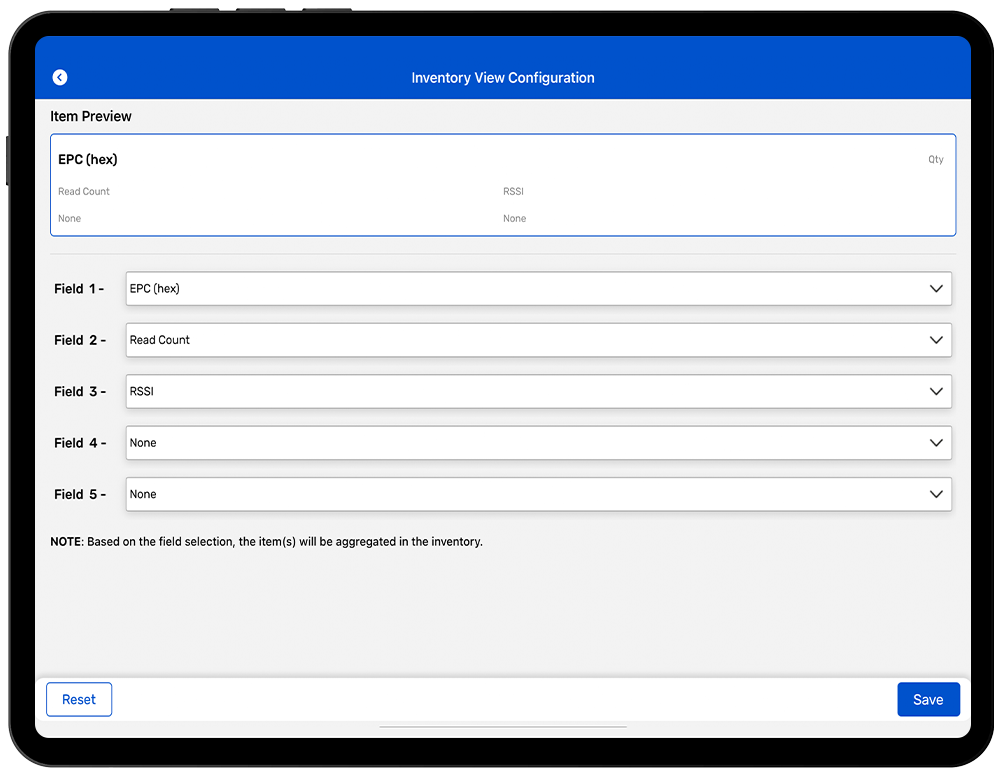

8. Click on the field , and select (the EPC ascii) .As shown in Fig 0.7.

Fig 0.6 : Click on Field option
Fig 0.7 : Select EPC (ascii) option.

9. After Selecting EPC ascii option for the field , then Click on Save option. As shown in Fig 0.8.

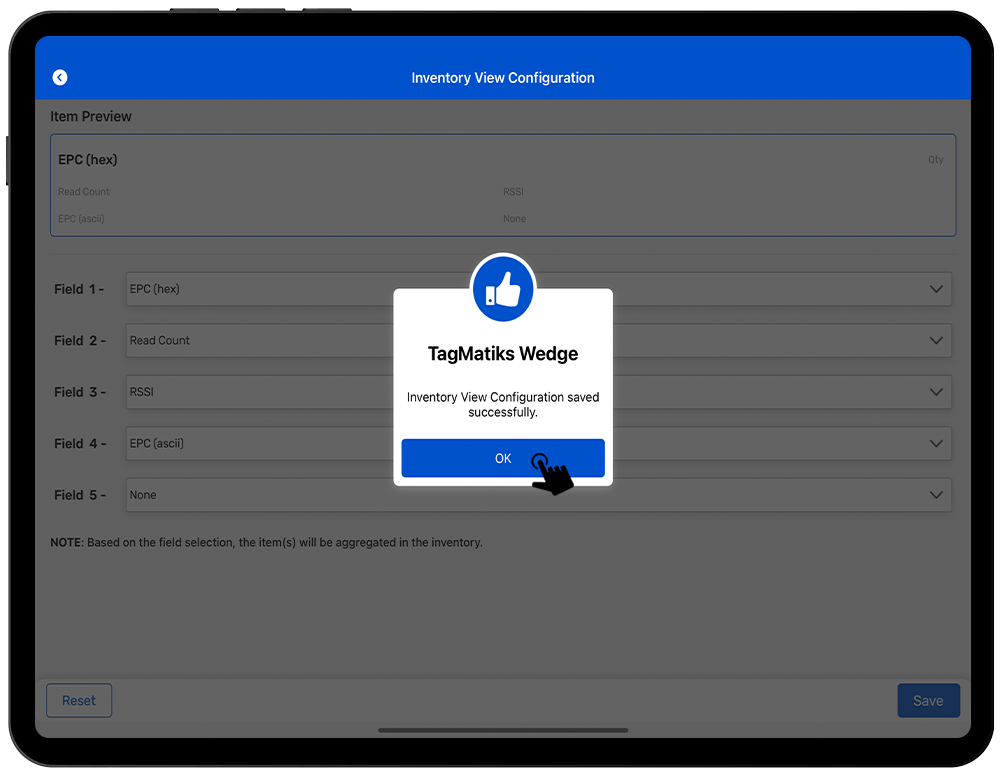

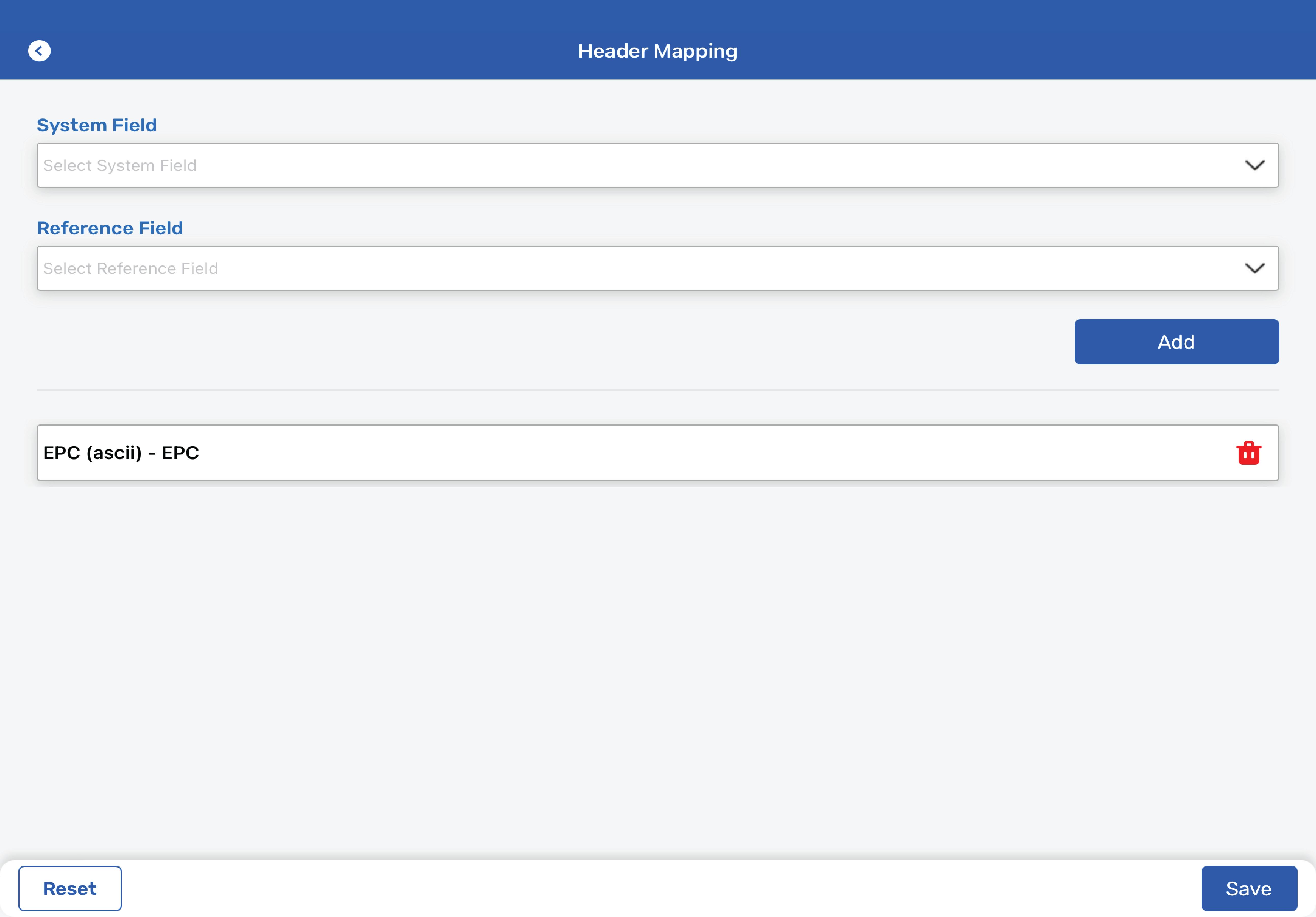

Fig 0.8 : After Click on Save button.

10. Click on the Inventory option from the home page of the application. As shown in Fig 0.9.

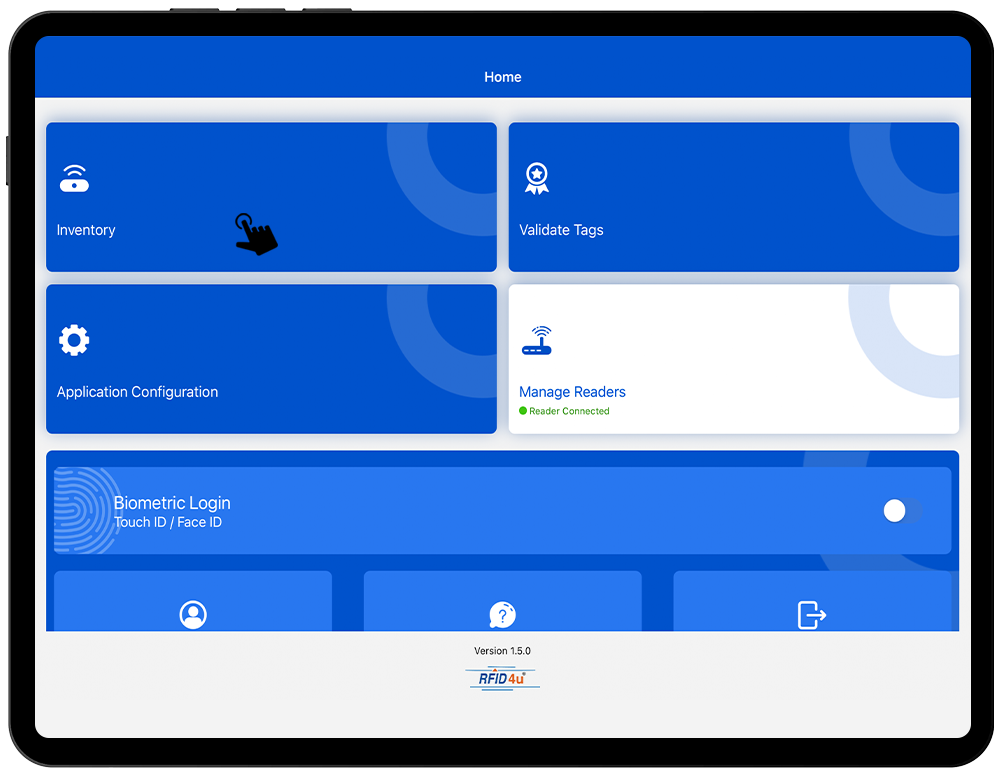

Fig 0.9 : Click on the Inventory option.

11. Click on the (+) icon button to start the new inventory. As shown in Fig 1.0.

Fig 1.0 : Inventory Page.

12. Click on the Scan soft button to start scanning RFID Tags. As shown in Fig 1.1.

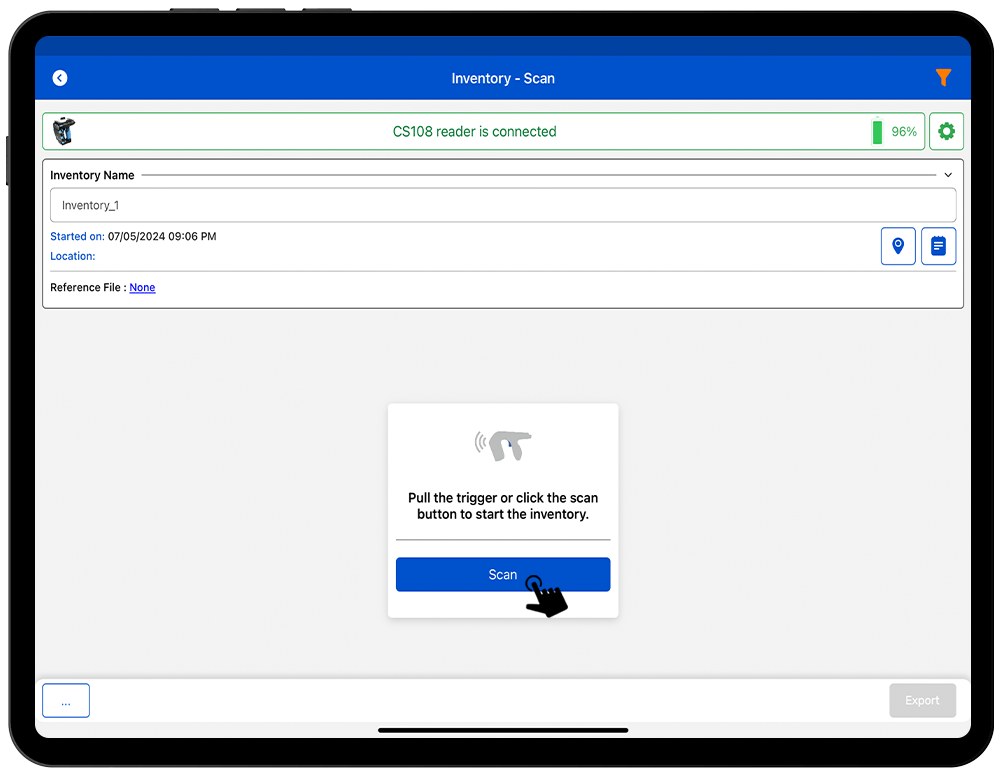

Fig 1.1 : Click on Scan soft button

13. Now, Reader Scanning RFID Tags. As shown in Fig 1.2.

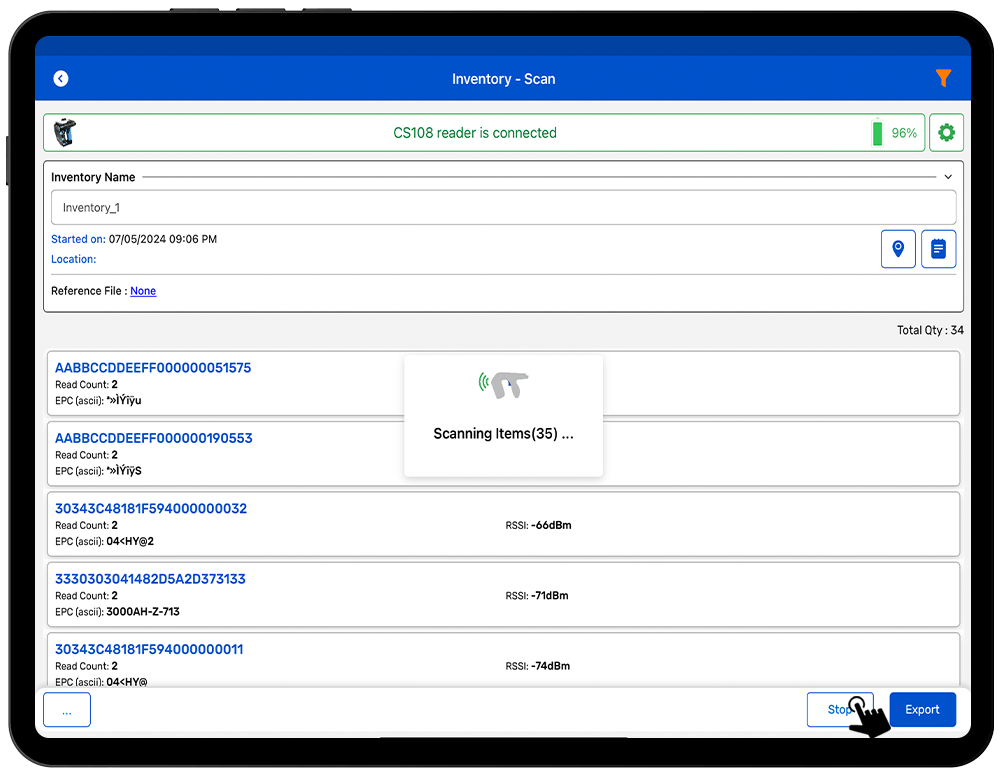

Fig 1.2 : RFID Tags are Scanning.

14. After clicking on the Stop button, you will see the results of Scanned RFID Tags. As shown in Fig 1.3.

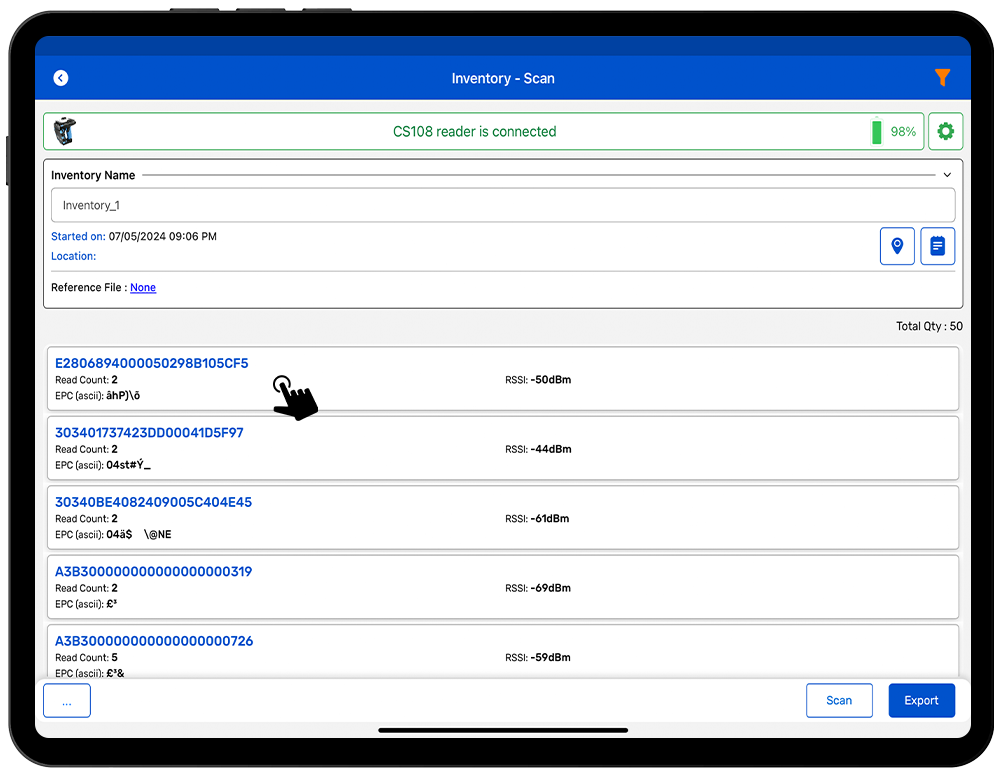

Fig 1.3 : After Scanned RFID Tags, you can see ASCII value.

15. Click on RFID Tag to see the Tag Details .In Tag Details page, you can see the ASCII details. As shown in Fig 1.4.

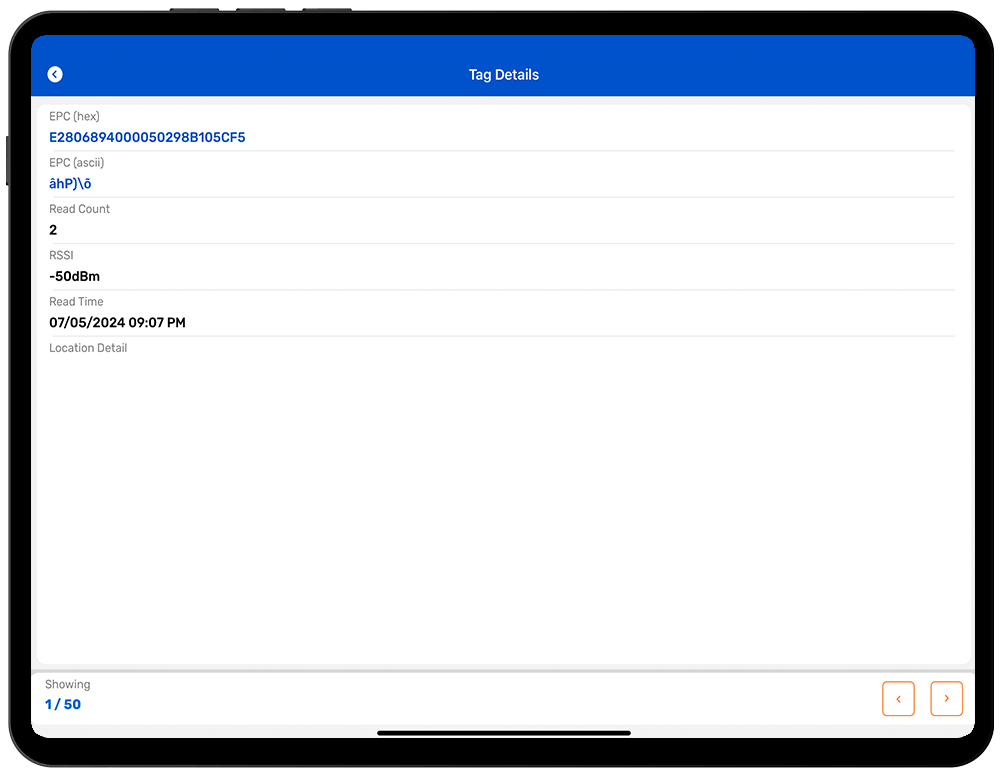

Fig 1.4: EPC (ascii) value shown in Tag Details page.
