TagMatiks Wedge - iOS Help

Setting up Your RFID Device - ASR-L251G AsReader


Summary

This section contains setup information for using the ASR-L251G AsReader with TagMatiks Wedge.

Pre-requisites
  • ASR-L251G AsReader should be sufficiently charged.
  • USB-C cable and the magnetic suction.
  • iOS devices should be sufficiently charged.

This document is divided into multiple sections as:

A. ASR-L251G Device Information

B. Switching ON & OFF ASR-L251G Device

C. Pairing of ASR-L251G Device with iOS device using TagMatiks Wedge Application

D. Reading of RFID Tags using ASR-L251G Device using TagMatiks Wedge Application

A. ASR-L251G Device Information

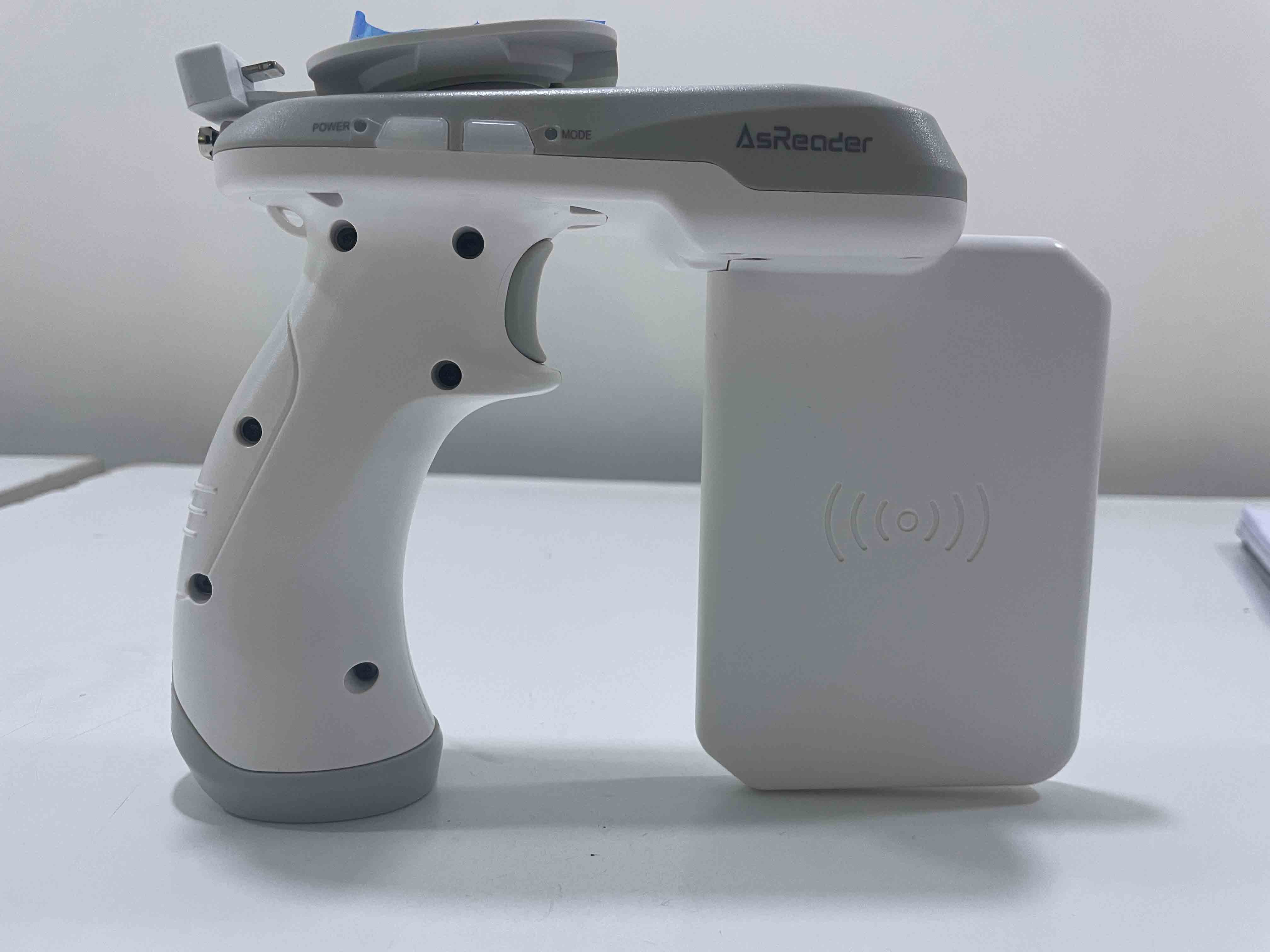

This GUN-Type combination model reads and writes RAIN UHF RFID tags and scans 2D/1D barcodes all-in-one.Connectivity is a breeze because the device is hard-wired. Contained within the "AsLOCK" is a magnetic USB connection ("Magconn") that allows you to connect and go instantly, without the Bluetooth pairing.


B. Switching ON & OFF ASR-L251G Device

I. Switching ON the ASR-L251G Device:

1. Press the handle trigger for two seconds to turn the reader On.

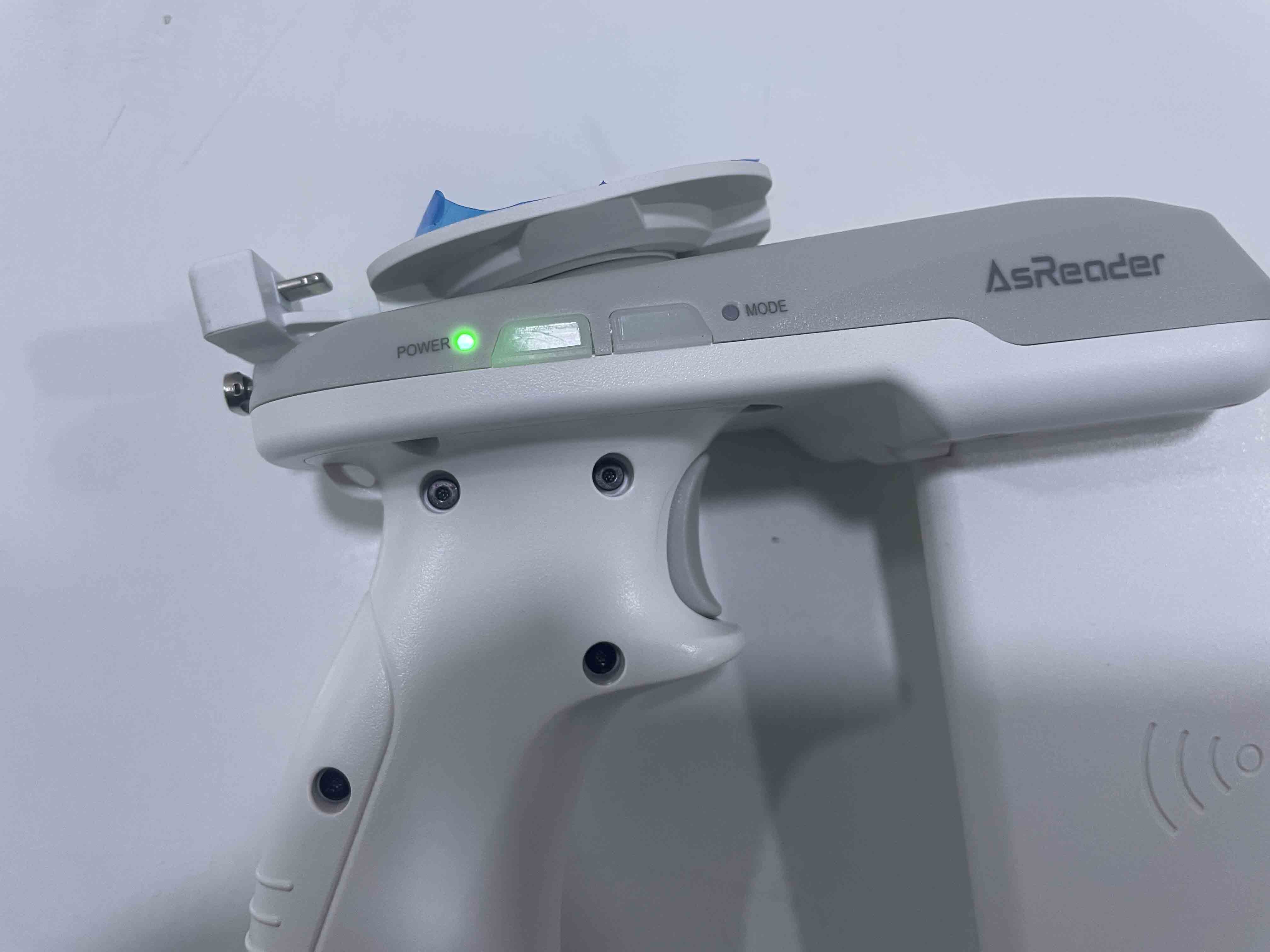

2. Then its battery LED lights up GREEN meaning power is on. As shown in Fig 0.1.

Fig 0.1: AsReader Turn On.

II. Switching OFF the Device:

1. To switch off when the ASR-L251G reader is on, press the Power button continuously for 3 seconds only.

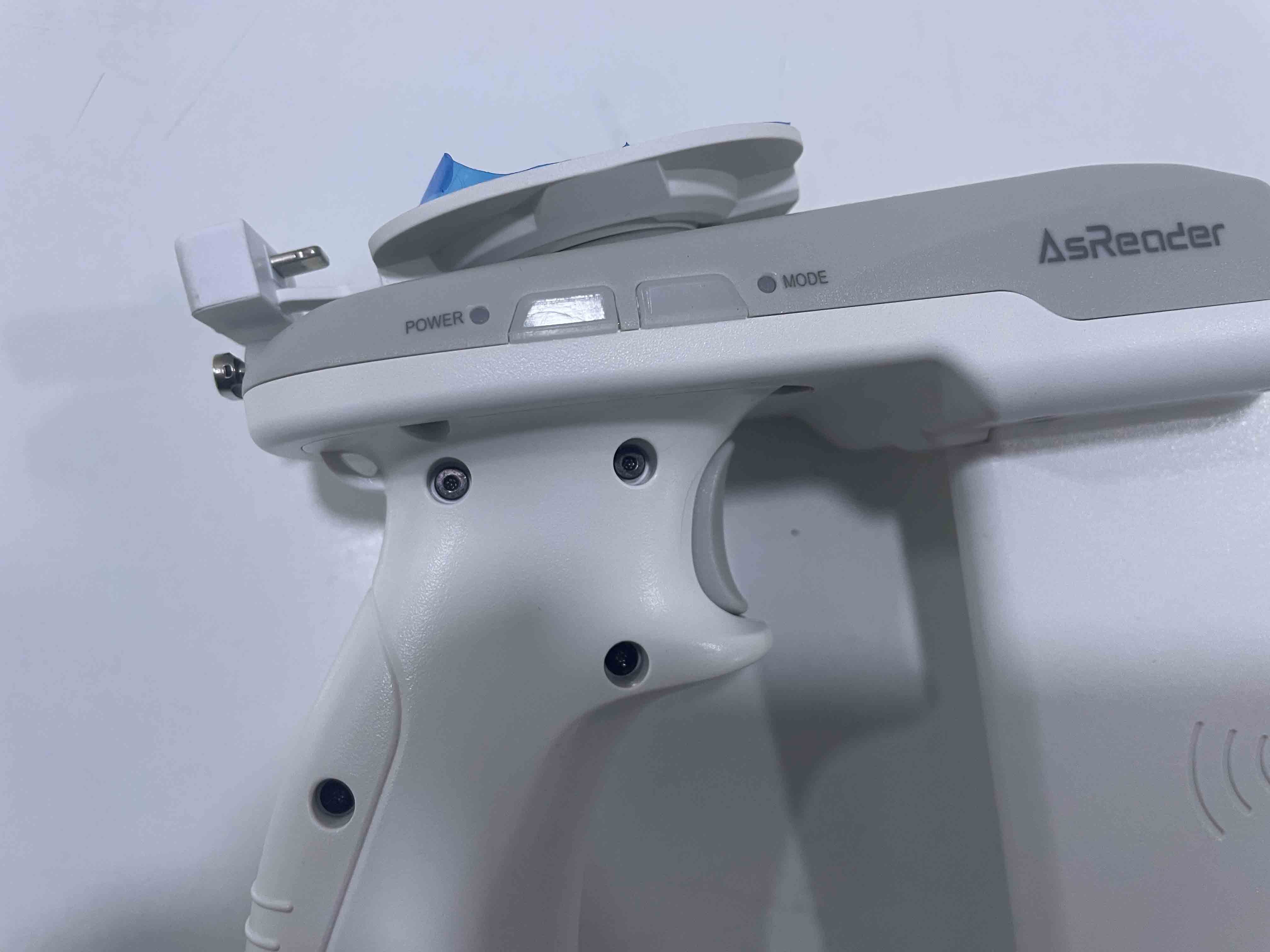

2. Then its GREEN LED light is off, which means the ASR-L251G device is powered off.As shown in Fig 0.2.

Fig 0.2 : AsReader Turn Off.
C. Pairing an iOS device using TagMatiks Wedge

Immediately the ASR-L251G device is powered on,Then the “Power LED” will turn:-

Green LED blinking Waiting for a connection to the mobile device
Green LED not-blinking Connected to mobile device
Red LED blinking Battery power less than 25% (Not connected to mobile device)
Red and green LED blinking alternately Battery power less than 25% (Connected to mobile device)
Red LED not-blinking Charging



And the “Link LED” will be off; this acknowledges that the ASR-L251G device is not connected to any iOS device.

• Open TagMatiks Wedge to it automatically connects to the reader.

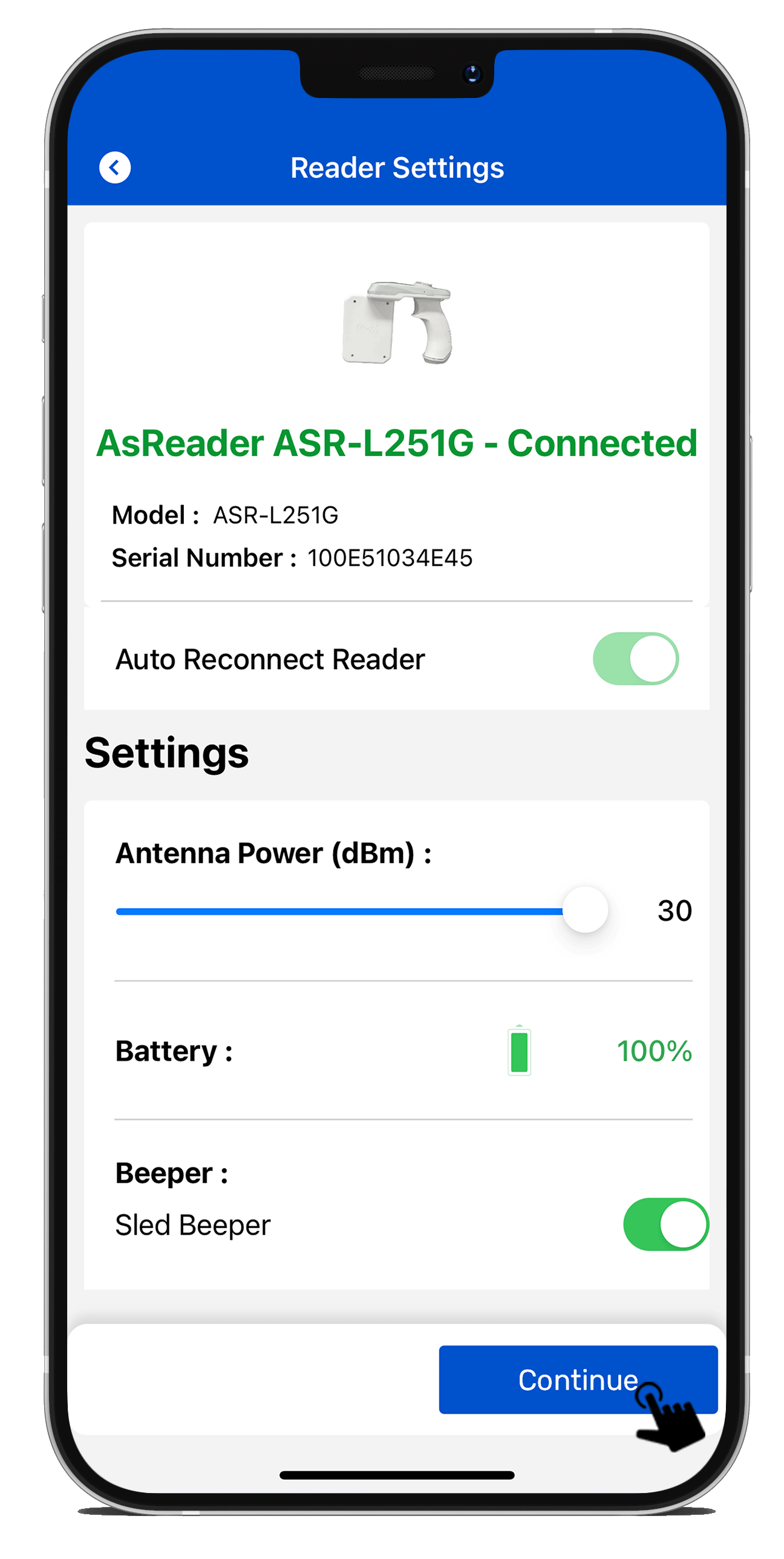

• Once the ASR-L251G is connected, the application will show the Reader information on the Reader Settings Page.As shown in Fig 0.3.

Fig 0.3: Reader Settings Page.

The Reader Settings has the following options :

  • Antenna Power (dBm) : Adjusts the range of the RFID handheld or sled.
  • Battery - displays the battery of the RFID handheld or sled.
  • Beeper Volume- Adjusts the volume level of the beeper to Low , Medium or High

NOTE: Auto Reconnect option is enabled by default to let the application automatically connect to the reader.

D. Reading RFID Tags using ASR-L251G Device

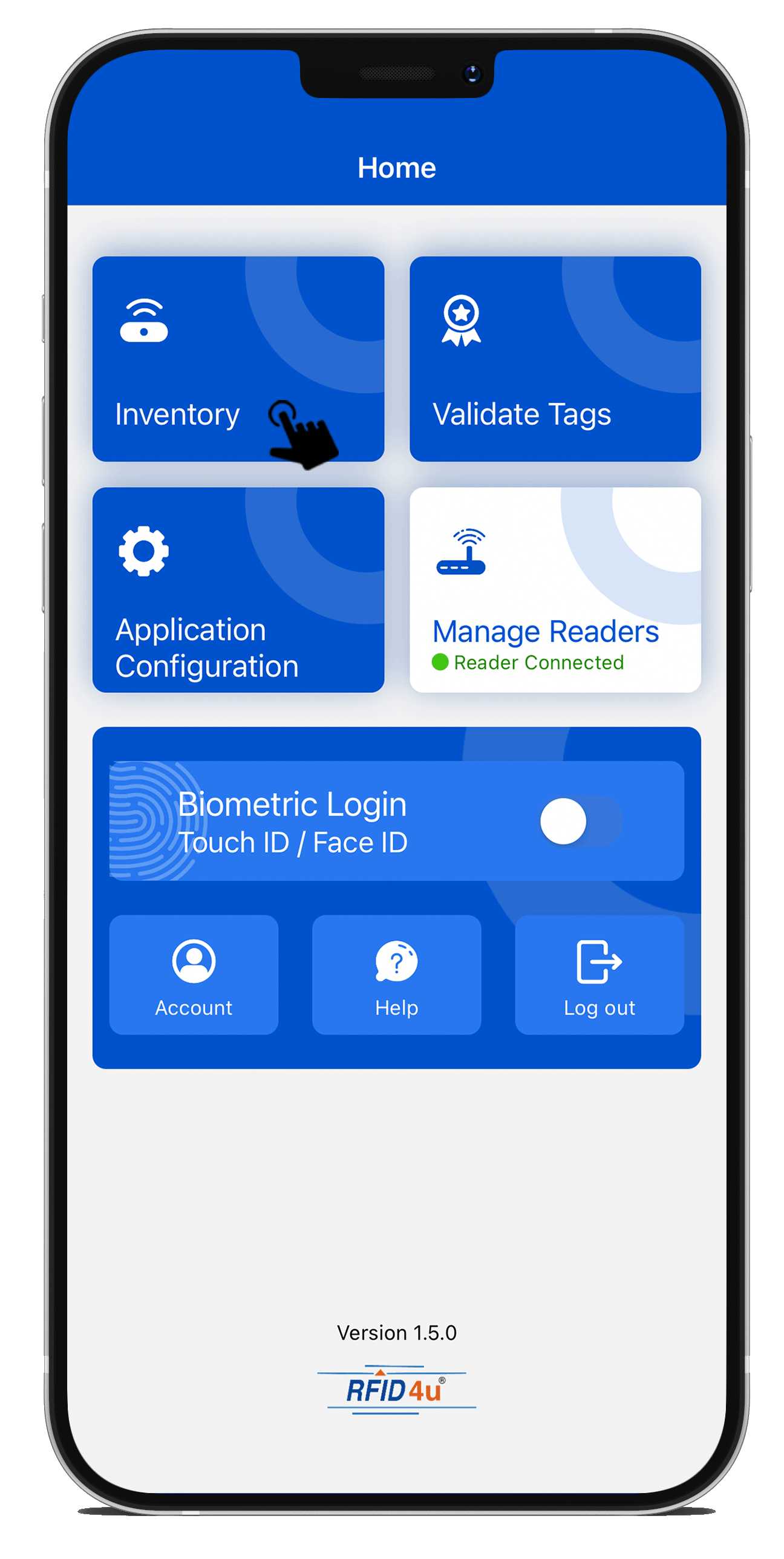

1.Click on the Inventory button option from the homepage of the application.As shown in Fig 0.4.

Fig 0.4: Home page of the Application.

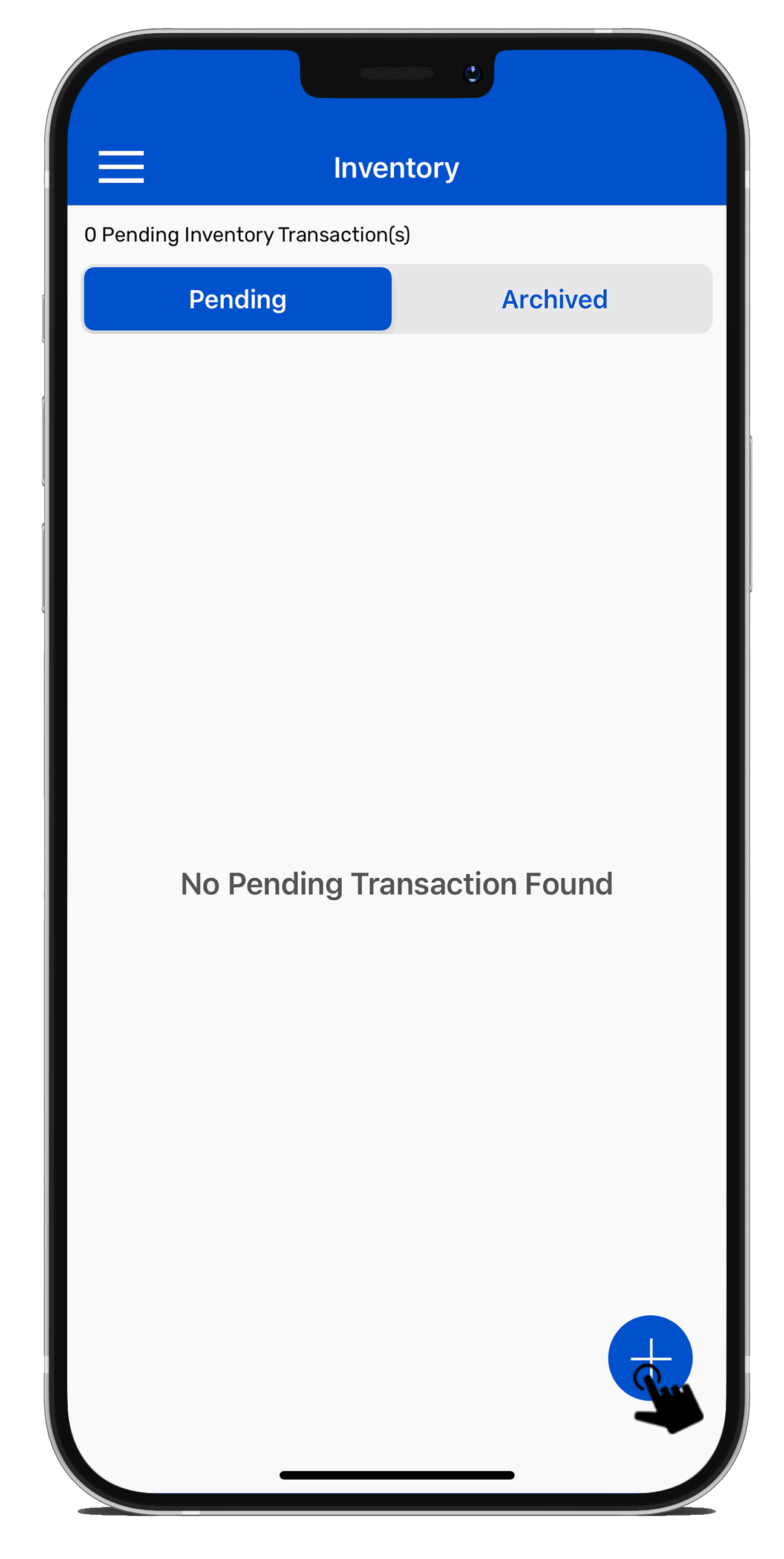

2.Then a new window will open, named: “Inventory.”. Create a new Inventory transaction, by Clicking the “+” button on the right bottom of the application. As shown in Fig 0.5.

Fig 0.5 : Inventory Page.

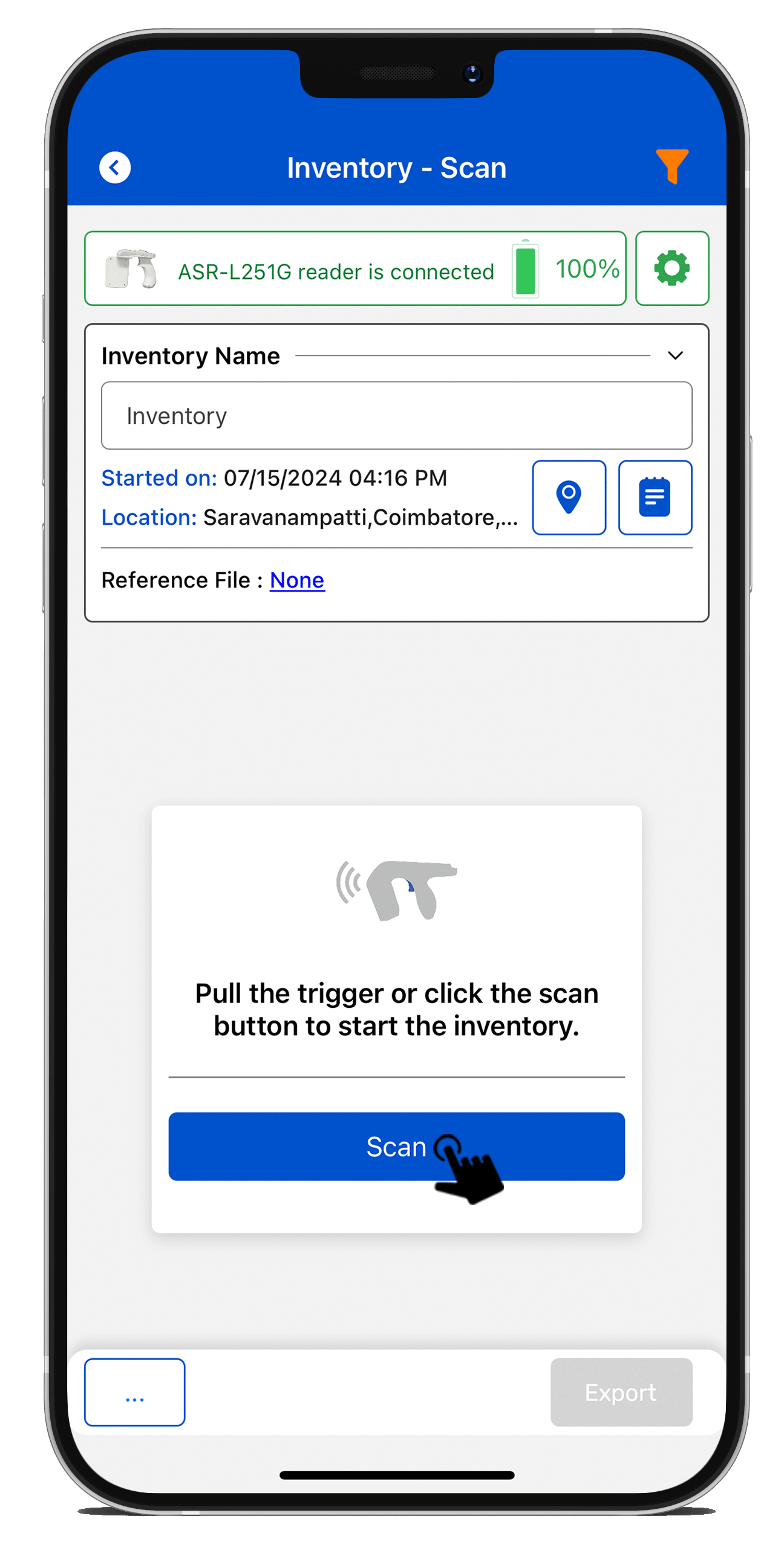

3. Click on the “Scan” button (on the right bottom of the application) to read the RFID tags.As shown in Fig 0.6.

Fig 0.6: Click on the Scan button

4.This means the ASR-L251G reader is in polling state and reading the tags. As shown in Fig 0.7.

Fig 0.7: Scanning RFID Tags.

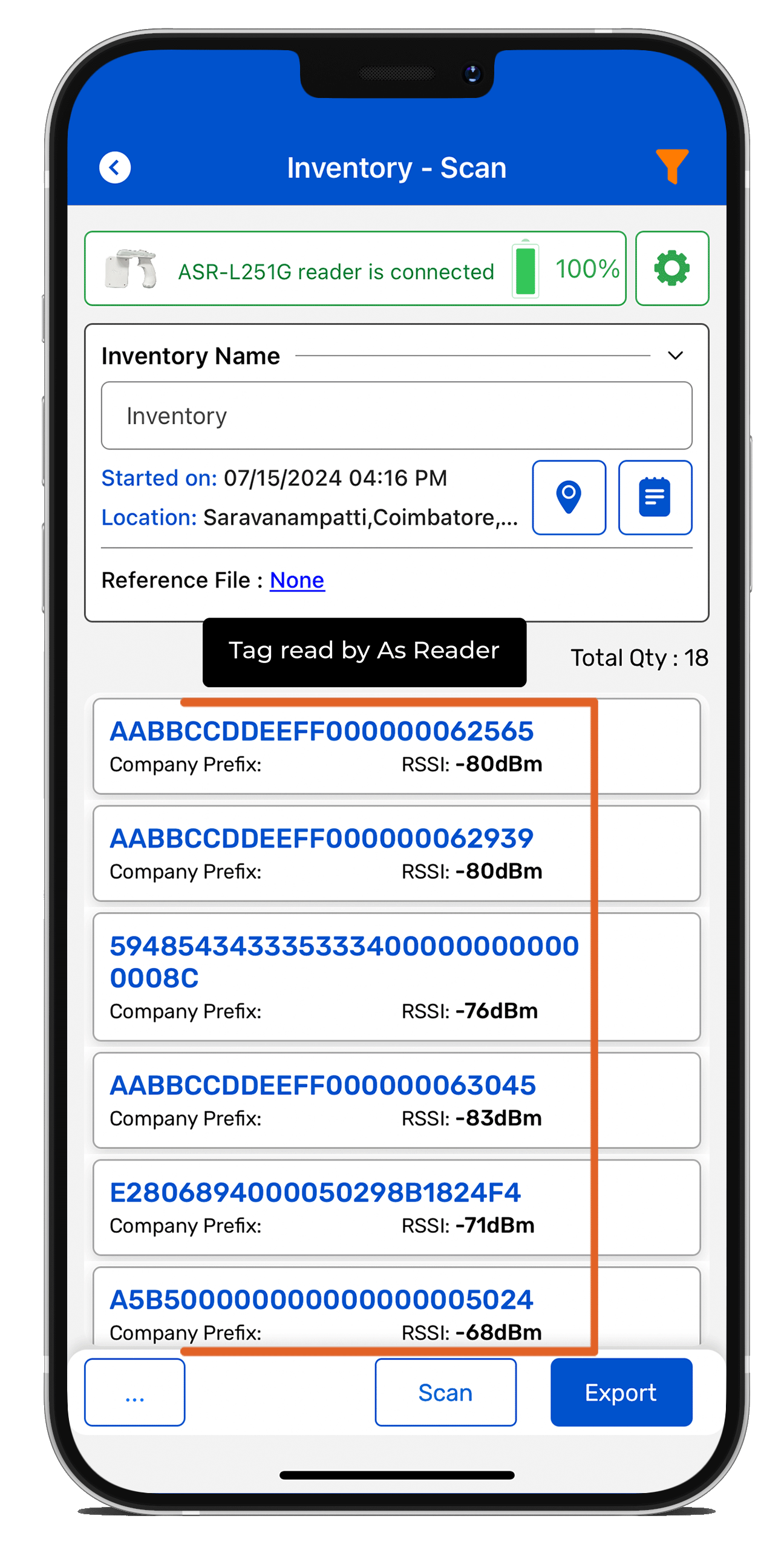

5.Once you press the “Stop” button (on the right bottom of the application); ASR-L251G reader will stop reading the tags.As a result, the read tags will populate on the application window, as shown in below image.As shown in Fig 0.8.

Fig 0.8 : After Scanning RFID tags.
