As RFID data is collected with the help of TagMatiks Wedge application, there is much information about the tag which is received by the application. This article guides on selecting the desired inventory fields which you want to view according to the use case.
The RFID reader must be connected with the application to take the inventory.
1.Click on the Application Configuration option from the home page of the application. As shown in Fig 0.1.

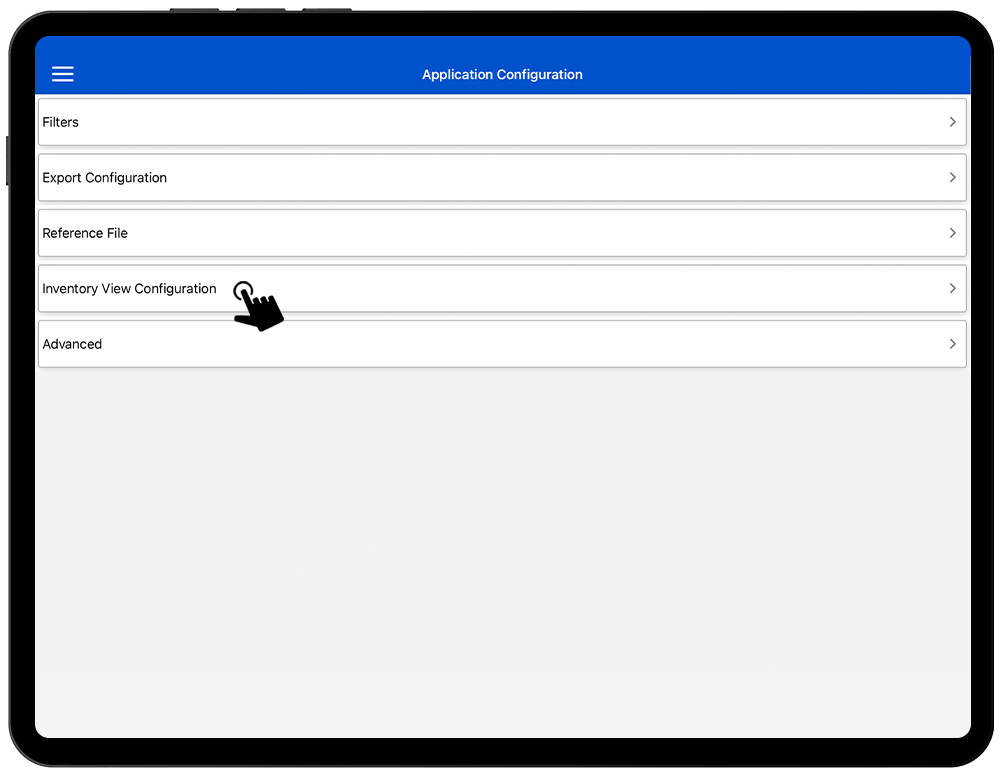

2.Click on the Inventory view Configuration option . As shown in Fig 0.2.
3. After clicking on the inventory view configuration option, it will redirect to the Inventory view configuration page. As shown in Fig 0.3.
4.From the drop-down menu, select the fields which you want to see when you perform the inventory.You can select the options from the System Fields or Reference Fields. As shown in Fig 0.3.
Note: Reference fields are those fields which are present in the reference file (xlsx, csv etc) uploaded in TagMatiks Wedge.
Note: Field 1 is selected as EPC by default.
Note: You can now also view the EPC in Hex and ASCII format depending on the user requirement

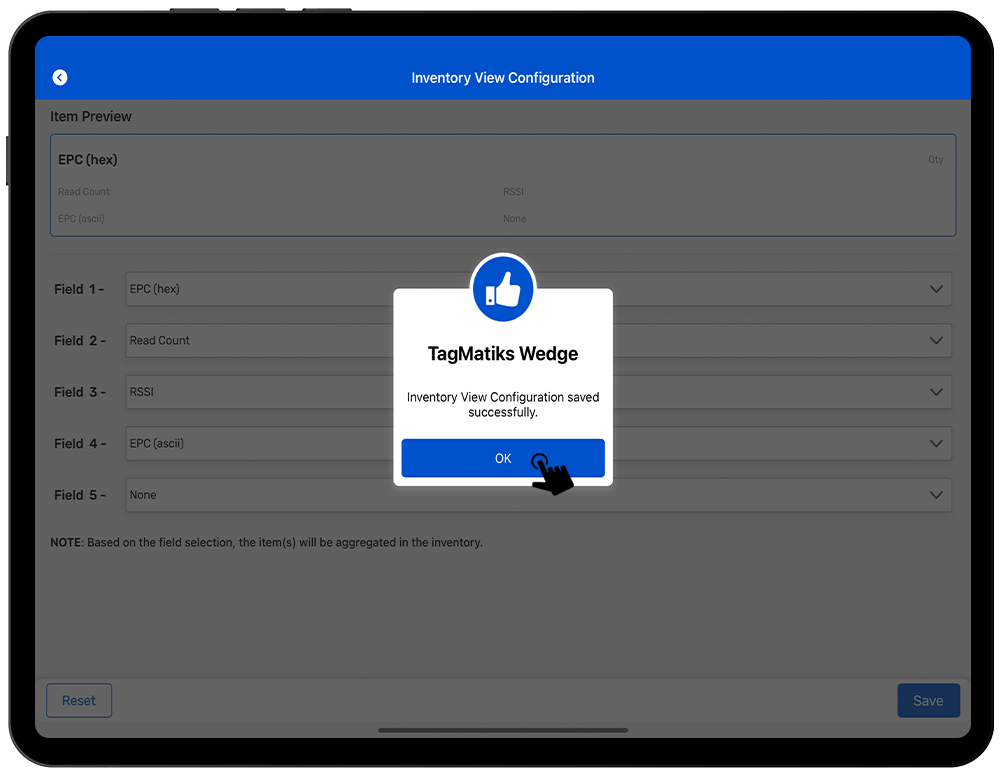

5.Select all your required fields and click on save button (right side bottom of the application). As shown in Fig 0.4.

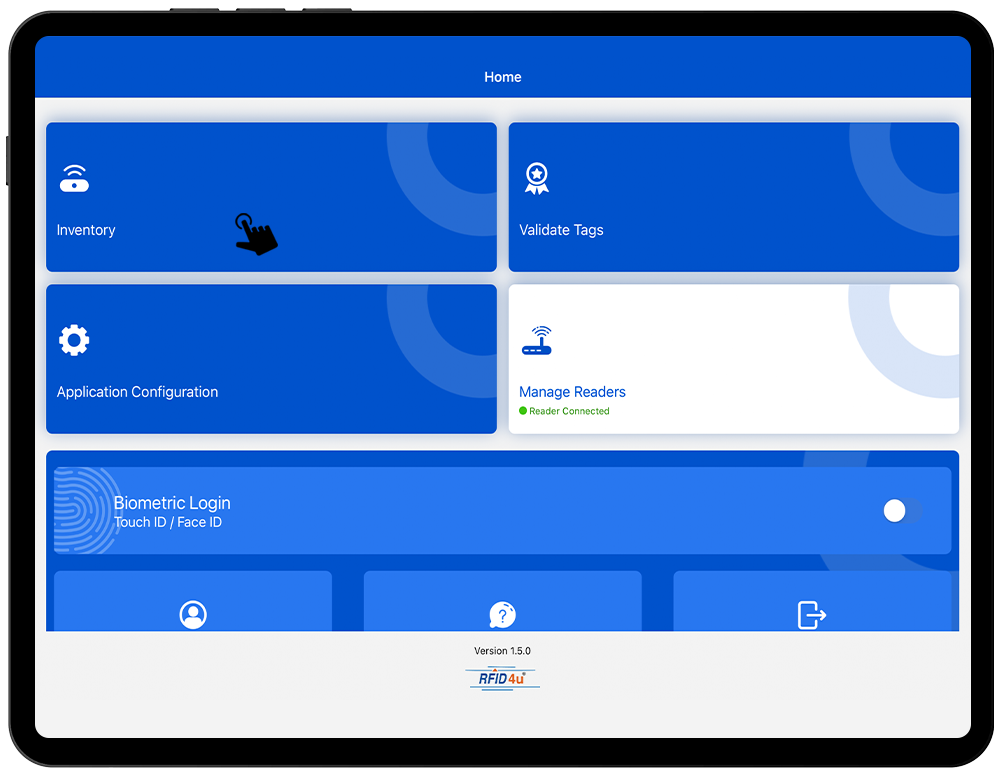

6.To take the inventory, Click on Inventory option from the home page of Application. As shown in Fig 0.5.
7.Click on the “+” icon on the right lower corner (to create new inventory). As shown in Fig 0.6.

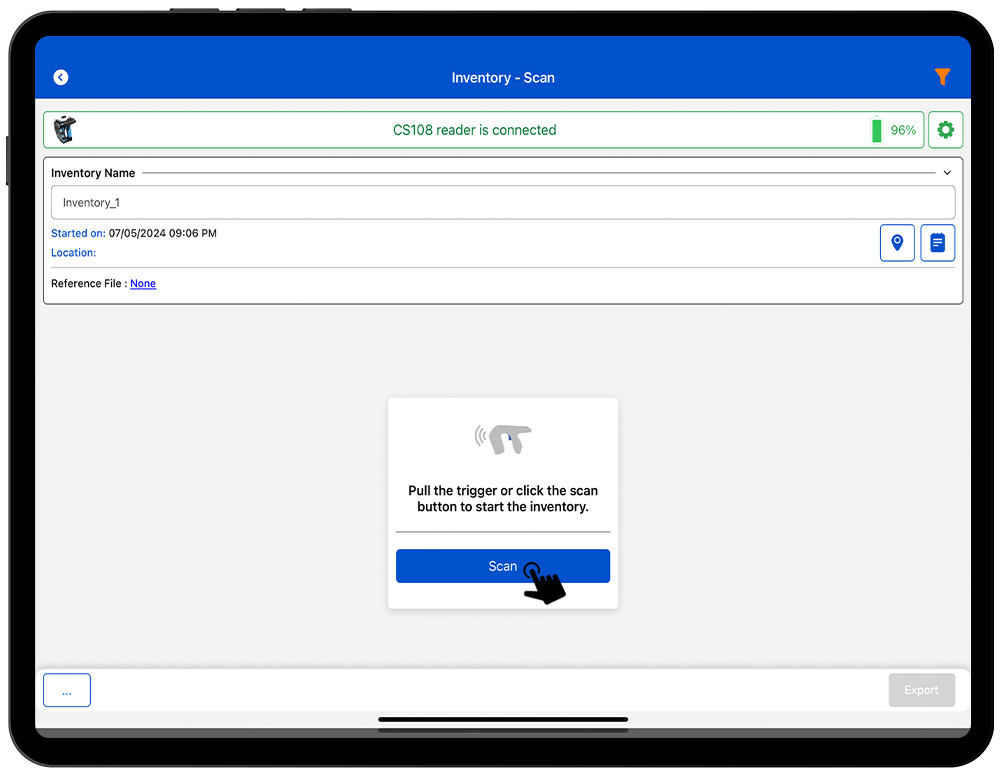

8. Click on the Scan button option (for scanning RFID Tags). As shown in Fig 0.7.

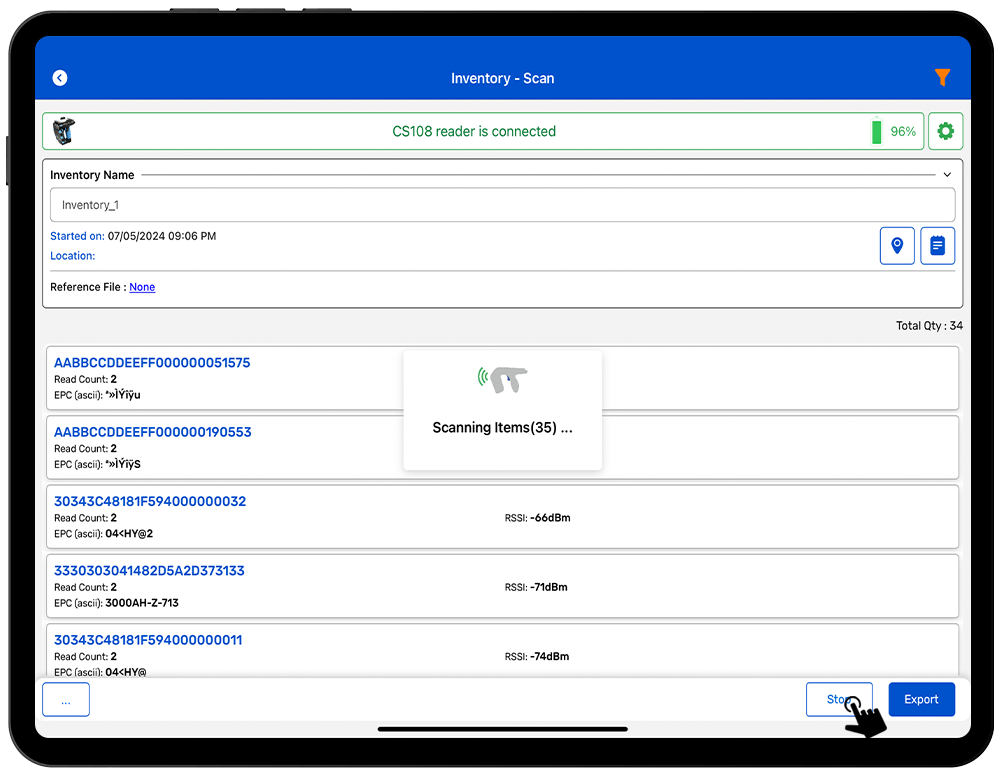

9. After clicking on the scan button, it is scanning the RFID tags. As shown in Fig 0.8.

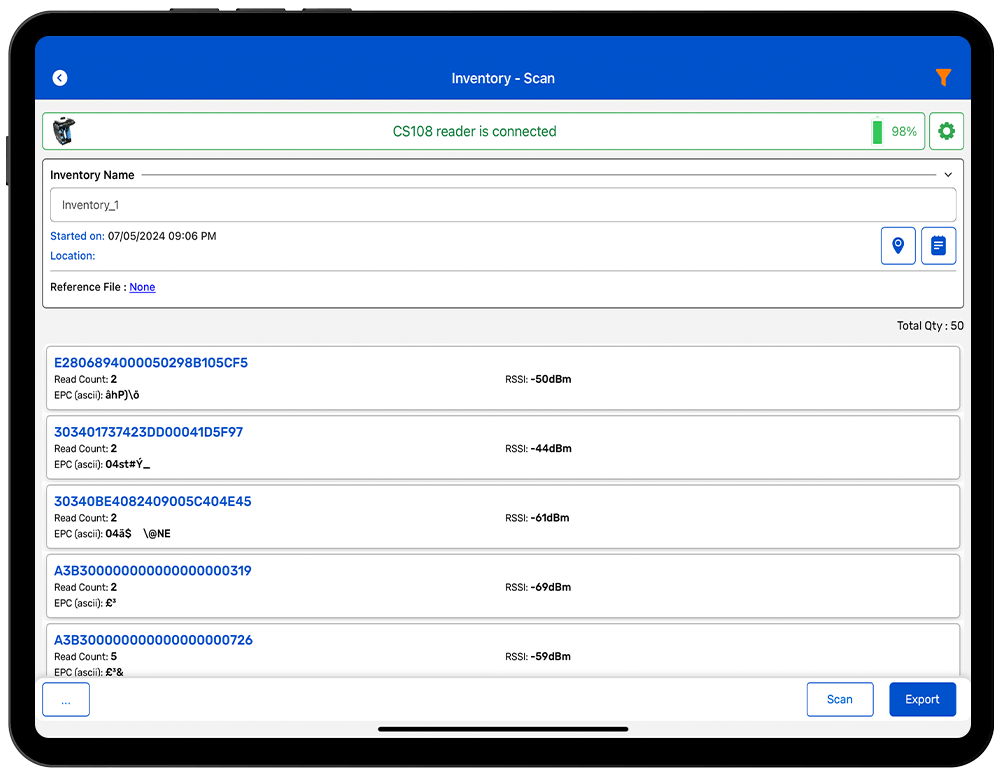

10. Once the inventory is done Click on the stop button (right side of Bottom “Stop” button).and the tag details with desired attributes will be displayed as shown in the image below Fig 0.9.
