Find the RFID Chip Type


Summary

One of the memory banks of a UHF (RAIN) RFID Chip is the TID memory bank. The TID memory bank is a factory encoded value that includes the manufacturer and chip model for that specific RFID Tag.

Pre-requisites
  • Reader should be connected to the TagMatiks wedge Application.
  • Already Done with one inventory. As shown in Fig 0.1.

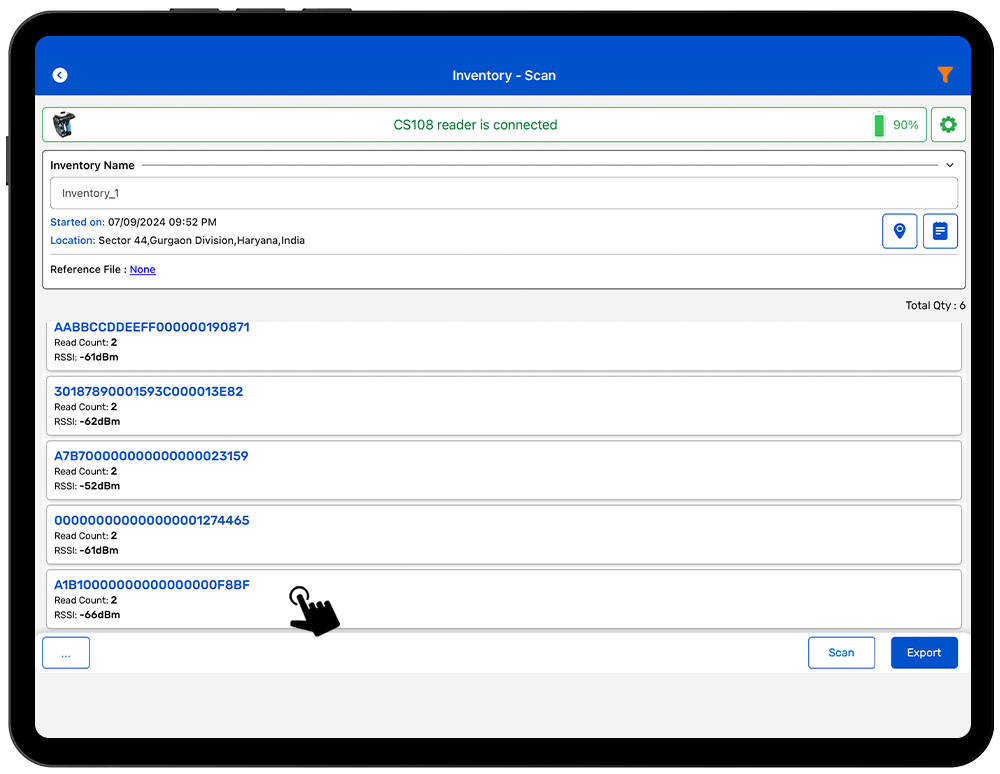

Fig 0.1: Already Take one inventory.
TagMatiks Wedge includes a feature that enables users to scan one or more RFID tags and determine the manufacturer and chip type.

1. To enable this feature, go to Application Configuration from the home page of the application.

2. Click on the Filter option. As shown in Fig 0.2.

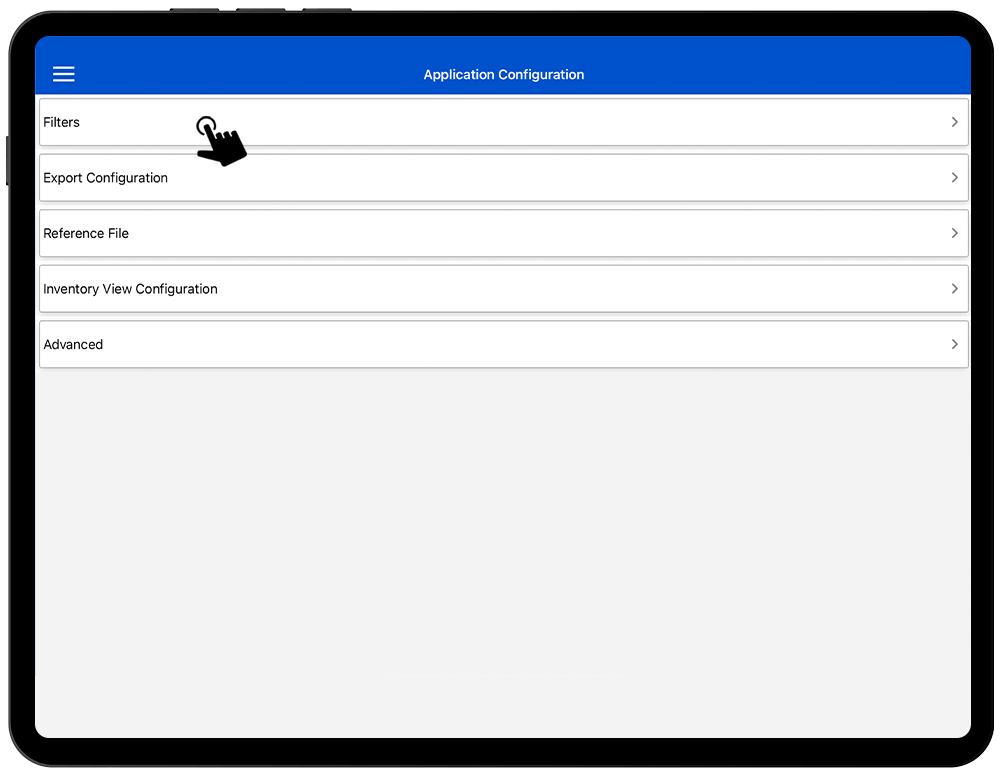

Fig 0.2: Select Filter option.

3. Under Memory Banks, enable the TID option. As shown in Fig 0.3.

Fig 0.3: Enable TID Memory Bank.

4. Click on the Chip Manufacture option, and Select the Chip Manufacture which you want. As shown in Fig 0.4.

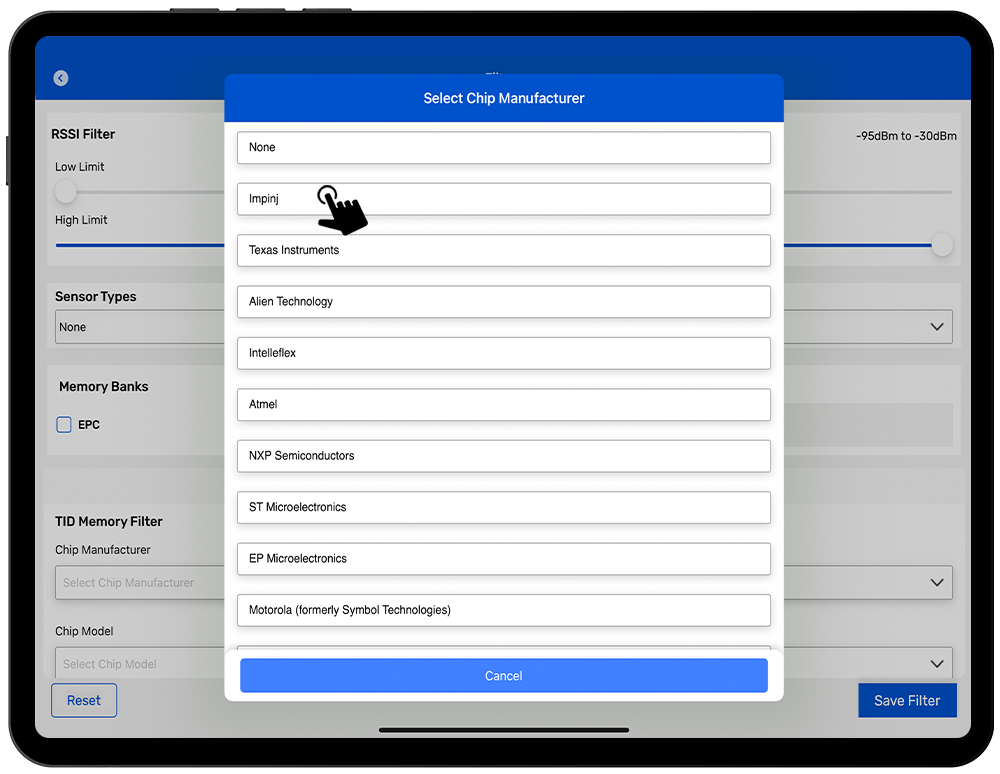

Fig 0.4. Select Impinj.

5. Click on Chip model, and Select Chip model from the drop down menu. As shown in Fig 0.5.

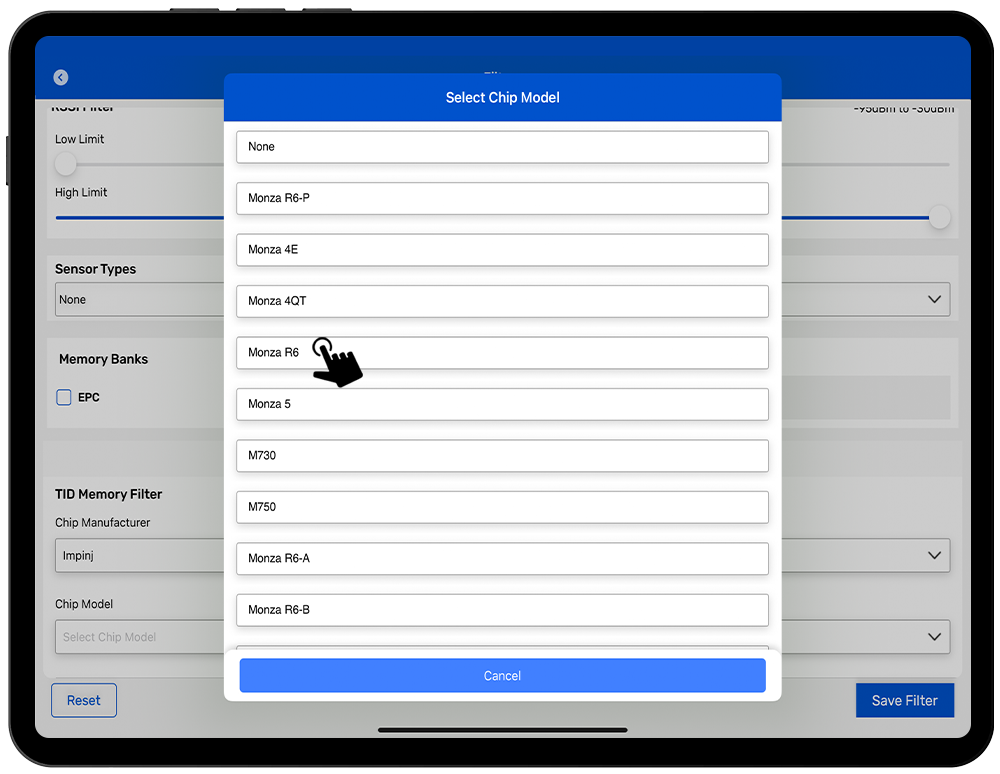

Fig 0.5 : Select Chip Model.

6. After Select the Chip manufacture and Chip Model , then Click on Save Button.

7. Go to the Inventory Page which we already took before in Fig 0.1.

8. To see the chip manufacturer and model, Click on an RFID tag to view the chip manufacturer and model. As shown in Fig 0.6.

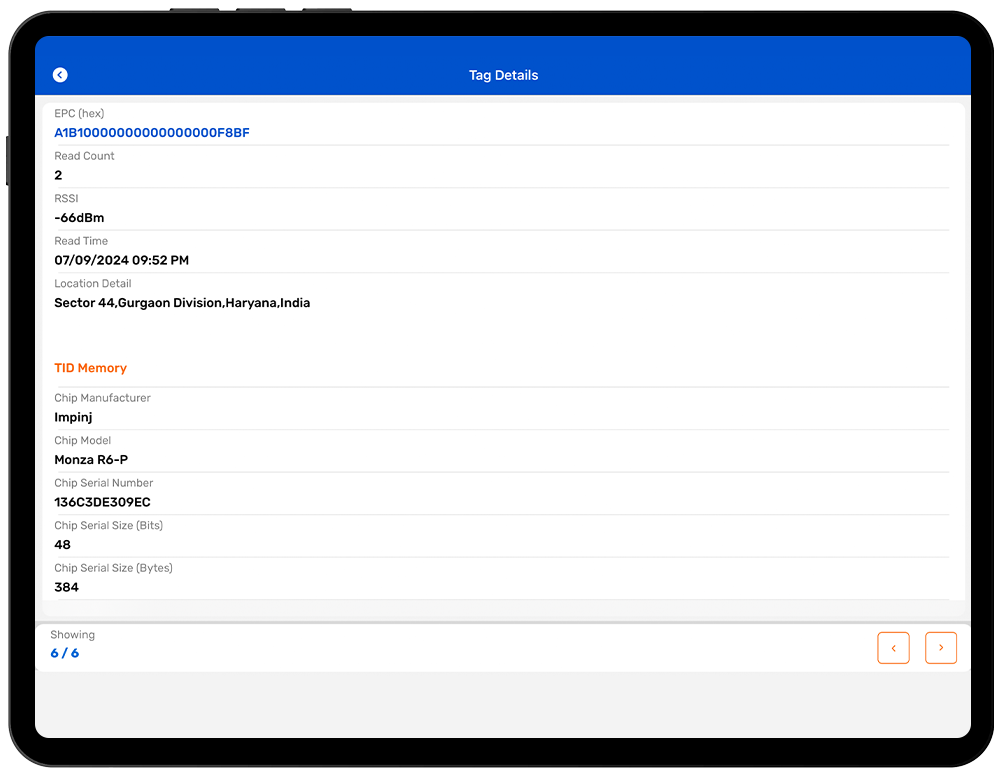

Fig 0.6. Tag Details with Chip types.
