Using Kill Tag Feature in TagMatiks Wedge


Summary

This article covers the step-by-step process to kill / disable the tag using TagMatiks Wedge Application in iOS.

Pre-requisites
  • RFID reader should be connected with the iOS device.
  • Kill password of the tag should be non- zero.

Please follow the below mentioned steps to kill/disable the tag in TagMatiks Wedge Application.

1.Click on the Application Configuration option from the home page of Application. As shown in Fig 0.1.

Fig 0.1: Application Configuration option available on home page.

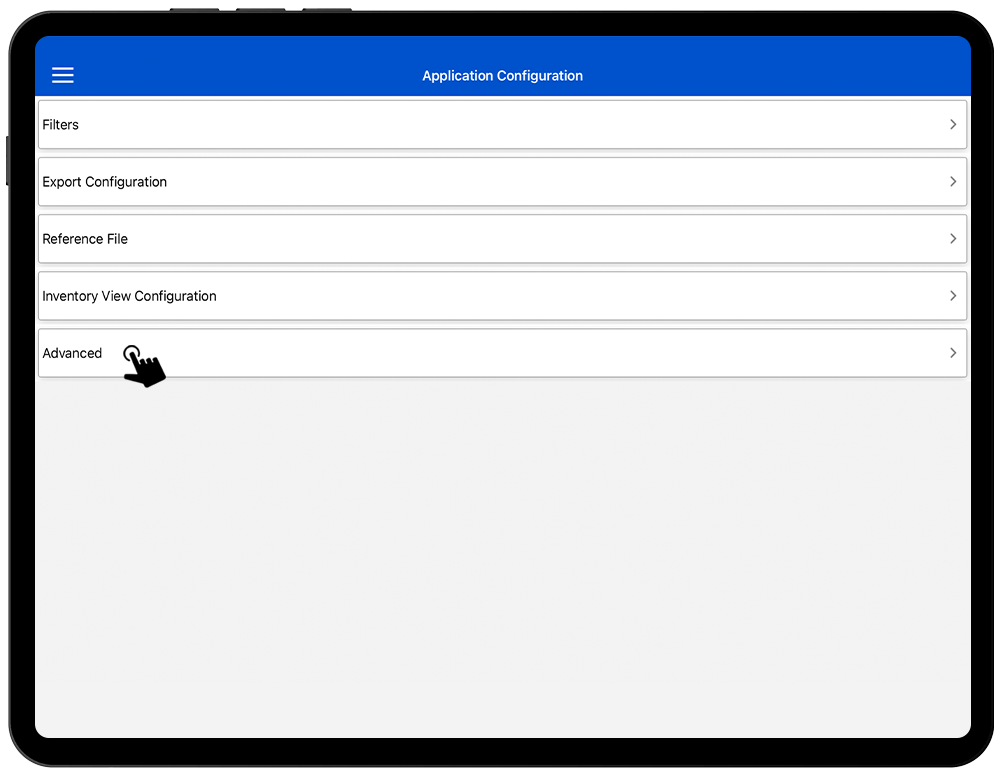

2.Click on the Advanced option from the Application configuration page. As shown in Fig 0.2.

Fig 0.2: Advanced option available.

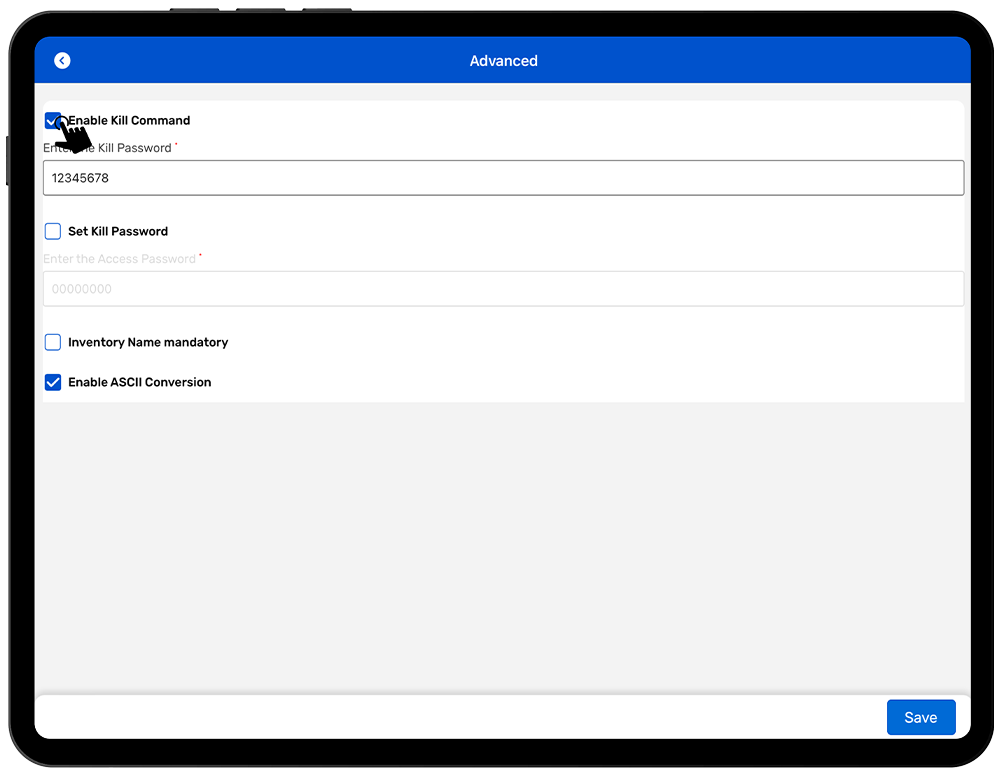

3.In the Advanced menu , Select Enable Kill Command option and then enter the kill password of the tag and then tap on the “Save” button to save the changes. As shown in Fig 0.3.

Fig 0.3: Enter the Kill password.

Note: The kill password of the tag should be non-zero. For example here it is 12345678. If the kill password is not set on the RFID label, then you choose the option under the Set Kill Password and set the password there as well.

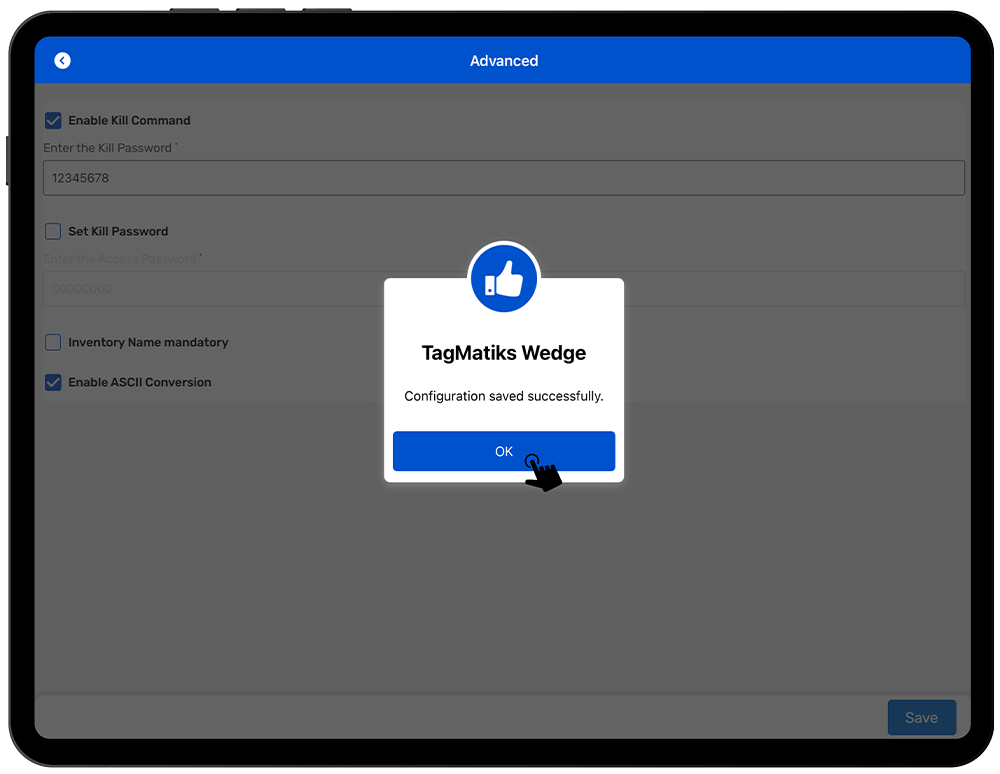

4.An acknowledgement will appear stating “Configuration Saved Successfully”. As shown in Fig 0.4.

Fig 0.4 : After clicking on Save button then alert message shows “Configuration Saved successfully” .

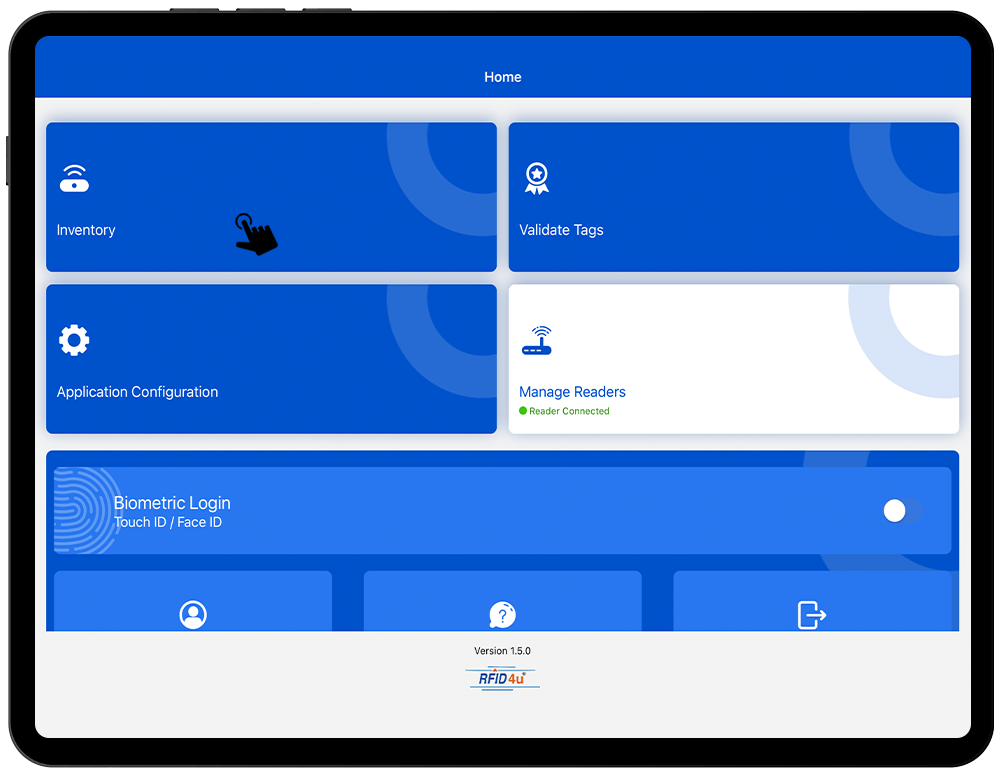

5. Click on the Inventory option from the home page of Application. As shown in Fig 0.5.

Fig 0.5: Inventory option available on home page.

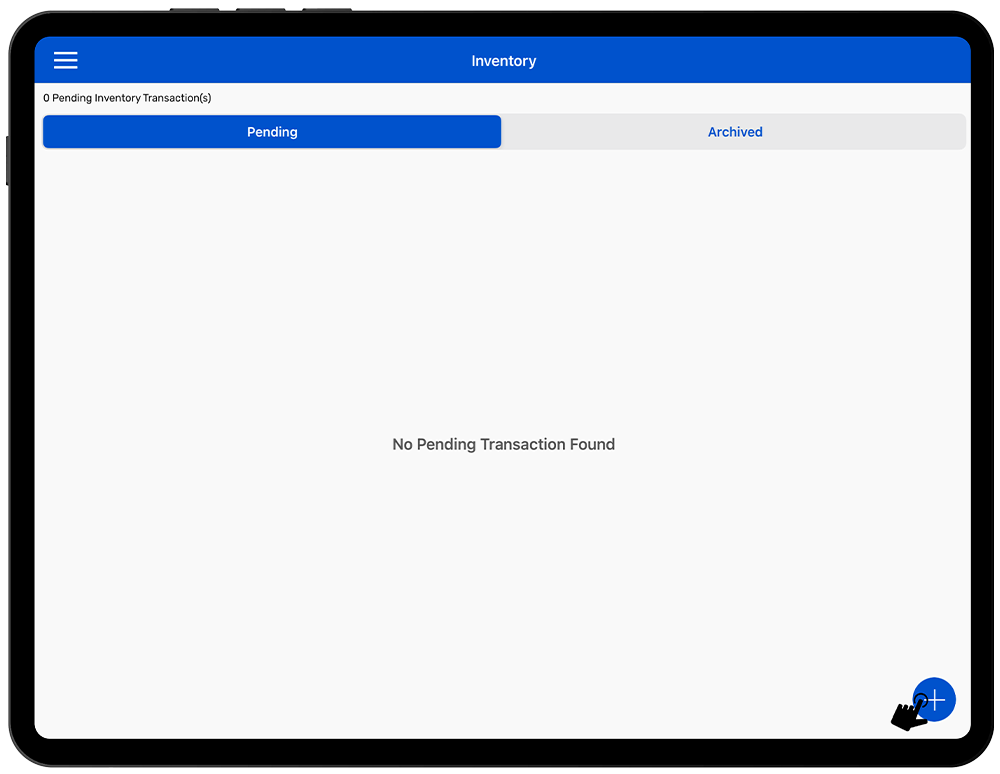

6.Click on the “+” icon button option, for creating new inventory. As shown in Fig 0.6.

Fig 0.6: Inventory Page.

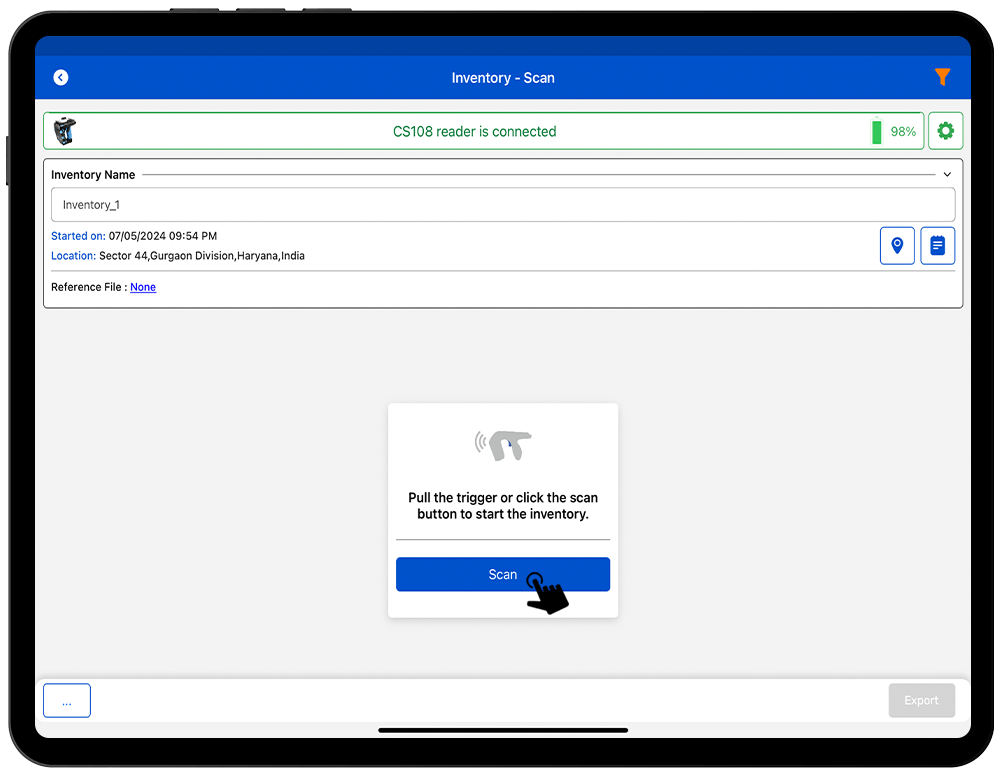

7. Click on Scan option button, For Scanning RFID Tags. As shown in Fig 0.7.

Fig 0.7 : Scan Button option.

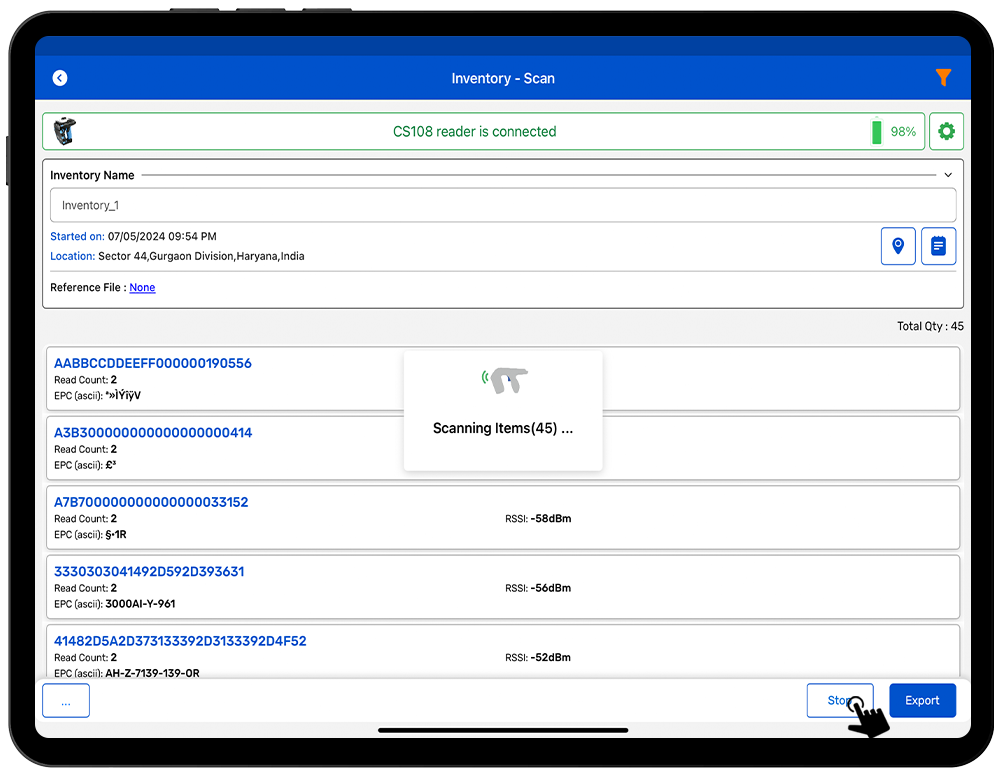

8. After Clicking on the Scan button , Reader Scanning RFID Tags. As shown in Fig 0.8.

Fig 0.8: Scanning RFID Tags.

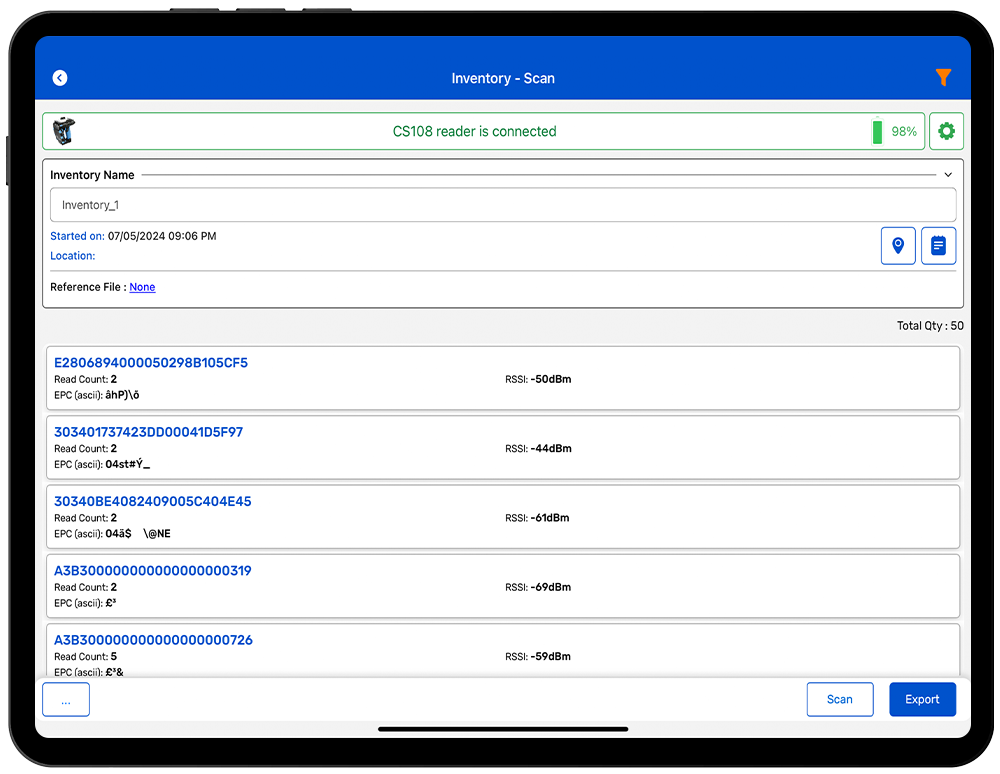

9. Click on “Stop” Button (Right side of the bottom), After this it will show RFID Scanned Tags. As shown in Fig 0.9.

Fig 0.9: After Scanning, RFID Tags showed.

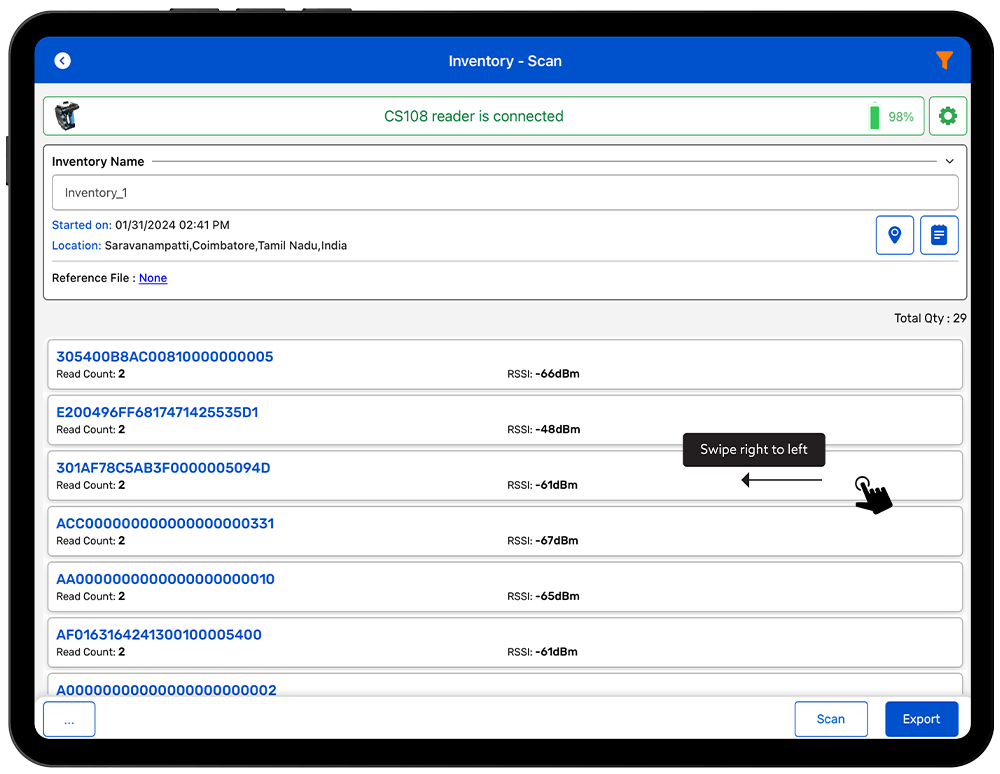

10.Swipe left the tag you want to kill/disable. As shown in Fig 1.0.

Fig 1.0: Swipe left side the tag to kill the tag.

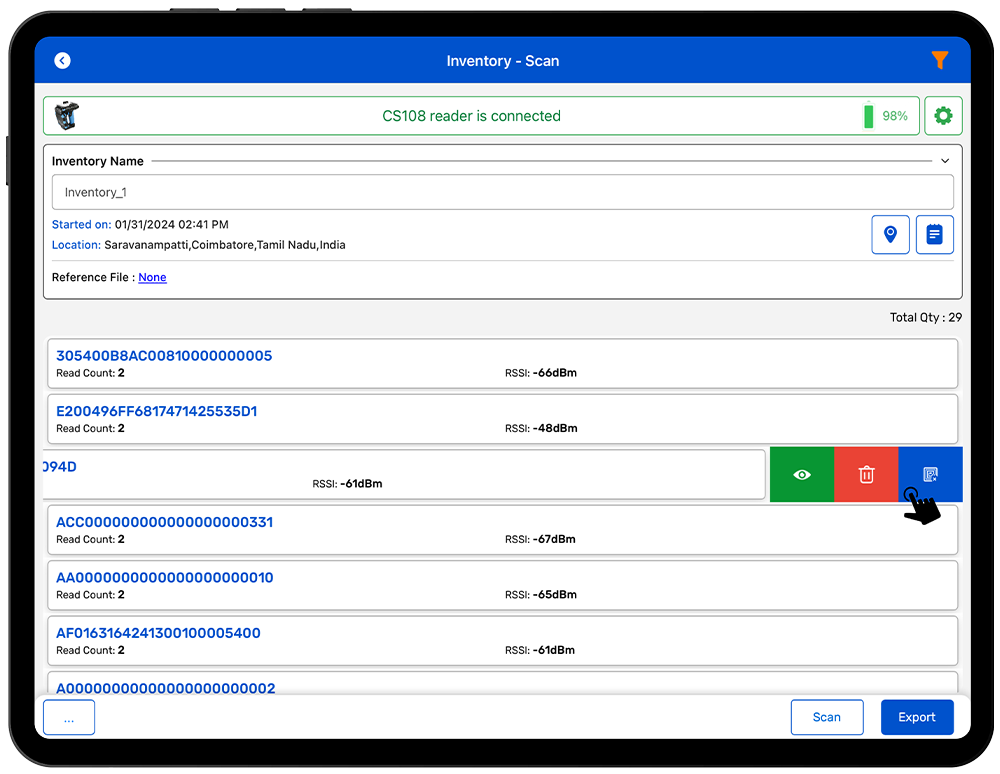

11.Tap on the last blue tag icon to kill/disable the tag. As shown in Fig 1.1.

Fig 1.1 : Click on the Blue Tag icon to kill the tag.

12. The application will confirm whether to kill/disable the tag. Select Yes to continue. As shown in Fig 1.2.

Fig 1.2: Application will confirm whether to kill / disable the tag.

13. After clicking on the blue icon, Tag will be Kill and it will show alert messages “Tag kill Successfully”.
